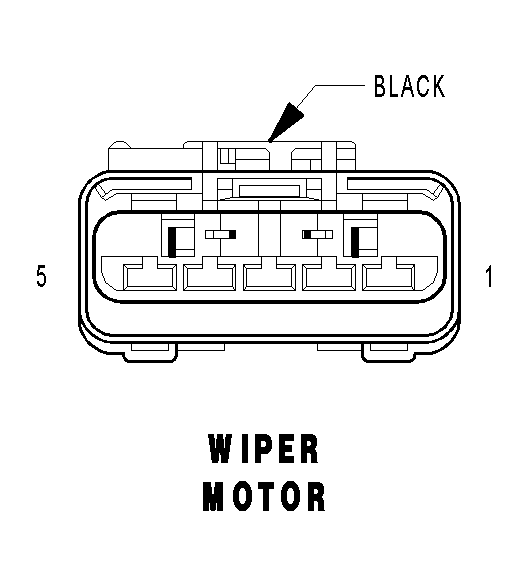

Wiper Motor Connector End View
WIPER MOTOR - BLACK 5 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z1 16BK |
GROUND |
| 2 |
V5 16DG/YL |
WIPER PARK SWITCH SENSE |
| 3 |
V6 16DB |
FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 4 |
V3 16BR/WT |
WIPER LOW SPEED OUTPUT |
| 5 |
V4 16RD/YL |
WIPER HIGH SPEED OUTPUT |
