Windshield Washer Pump Connector End View

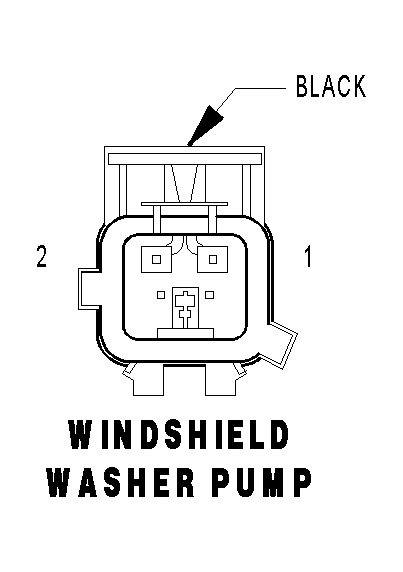

Windshield Washer Pump Connector End View
WINDSHIELD WASHER PUMP - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z1 18BK
GROUND
2
V10 18BR
WASHER PUMP CONTROL SWITCH OUTPUT
Courtesy of DAIMLERCHRYSLER CORP.
