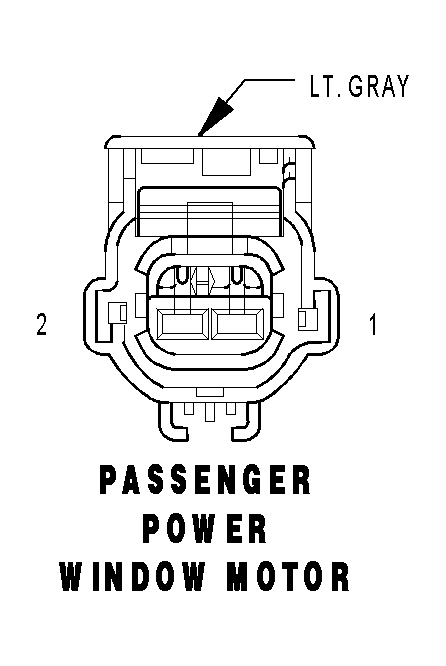

Passenger Power Window Motor Connector End View

PASSENGER POWER WINDOW MOTOR - LT. GRAY 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q12 14BR	PASSENGER WINDOW DRIVER (UP)
2	Q22 14VT	PASSENGER WINDOW DRIVER (DOWN)
