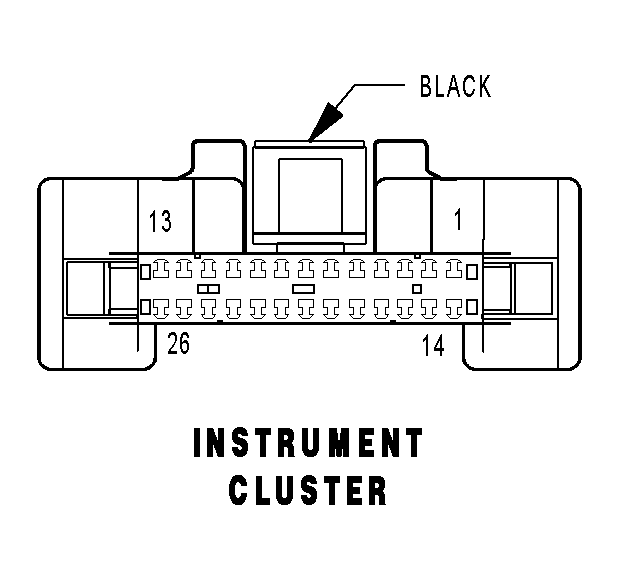

Instrument Cluster Connector End View
INSTRUMENT CLUSTER - BLACK 26 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L38 16BR/WT (EXPORT) | REAR FOG LAMP FEED |
| 2 | D25 20VT/YL | PCI BUS |
| 3 | M2 20YL | COURTESY LAMP CONTROL |
| 4 | L27 16WT/TN (DAYTIME RUNNING LAMPS) | FOG LAMP SWITCH SENSE |
| 4 | L39 20LB (EXCEPT EXPORT/EXCEPT DAYTIME RUNNING LAMPS) | FRONT FOG LAMP SWITCH OUTPUT |
| 4 | L39 16LB (EXPORT) | FRONT FOG LAMP SWITCH OUTPUT |
| 5 | G69 20BK/OR | VTSS INDICATOR DRIVER |
| 6 | E19 22RD | PANEL LAMPS DIMMER SIGNAL |
| 7 | G4 20DB | FUEL LEVEL SENSOR SIGNAL |
| 8 | - | - |
| 9 | G5 20DB/WT (AUTOSTICK) | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 10 | Z3 16BK/OR | GROUND |
| 11 | - | - |
| 12 | E2 22OR | PANEL LAMPS DRIVER |
| 13 | M9 20LB/OR | PASSENGER DOOR AJAR/RKE SENSE |
| 14 | L7 18BK/YL | HEADLAMP SWITCH OUTPUT |
| 15 | F11 20RD/WT (AUTOSTICK) | IGNITION SWITCH OUTPUT (OFF-RUN-START) |
| 15 | G5 20DB/WT (EXCEPT AUTOSTICK) | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 16 | L161 18LG/OR (EXCEPT EXPORT) | LEFT TURN SIGNAL |
| 17 | L160 18TN/RD (EXCEPT EXPORT) | RIGHT TURN SIGNAL |
| 18 | L61 18LG | LEFT TURN SIGNAL |
| 19 | L60 18TN | RIGHT TURN SIGNAL |
| 20 | L4 16VT/WT (EXCEPT EXPORT) | DIMMER SWITCH LOW BEAM OUTPUT |
| 21 | M1 18PK | FUSED B(+) |
| 22 | G11 20WT/BK | RED BRAKE WARNING INDICATOR DRIVER |
| 23 | G26 22LB | KEY-IN IGNITION SWITCH SENSE |
| 24 | G75 20TN/BK (LHD) | LEFT FRONT DOOR AJAR SWITCH SENSE |
| 24 | G74 20TN/RD (RHD) | RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 25 | G10 20LG/RD | SEAT BELT SWITCH SENSE |
| 26 | L3 16RD/OR | DIMMER SWITCH HIGH BEAM OUTPUT |
