Ignition Switch Connector End View (C2)

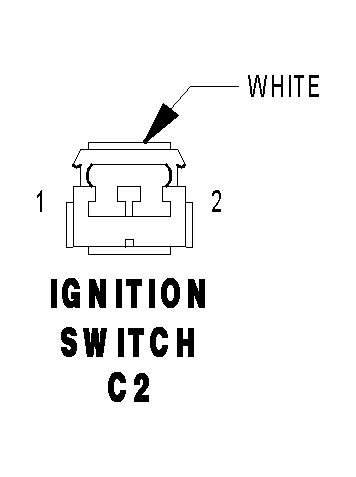

IGNITION SWITCH C2 - WHITE 2 WAY

GCPL580114Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A81 20DG/RD FUSED B(+)
2 F11 20RD/WT (AUTOSTICK) IGNITION SWITCH OUTPUT (OFF-RUN-START)
