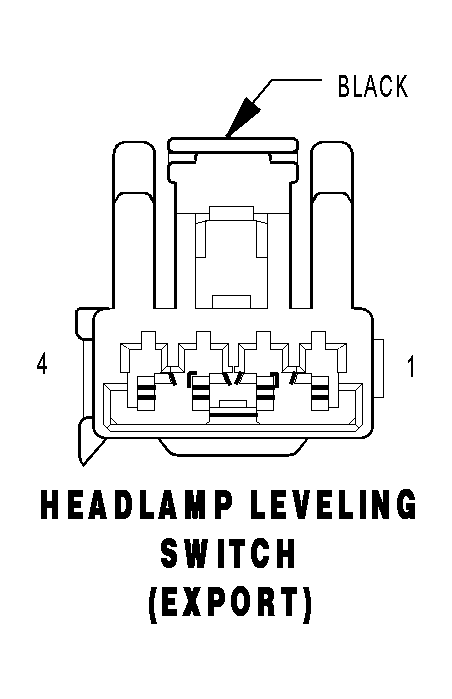

Headlamp Leveling Switch (Export) Connector End View
HEADLAMP LEVELING SWITCH (EXPORT) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L13 20BR/YL |
HEADLAMP ADJUST SIGNAL |
| 2 |
L43 18VT |
FUSED LEFT LOW BEAM OUTPUT |
| 3 |
Z1 20BK |
GROUND |
| 4 |
E2 22OR |
PANEL LAMPS DRIVER |
