Neon SXT, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
Crankshaft Position Sensor Connector End View
Crankshaft Position Sensor Connector End View

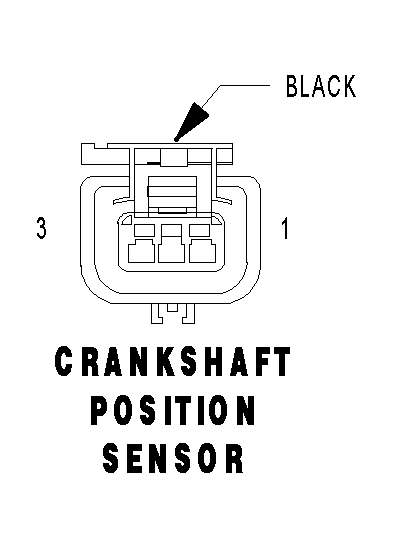

CRANKSHAFT POSITION SENSOR - BLACK 3 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K7 20OR
5 VOLT SUPPLY
2
K4 20BK/LB
SENSOR GROUND
3
K24 20GY/BK
CKP SIGNAL
Courtesy of DAIMLERCHRYSLER CORP.
