Cargo Lamp Connector End View

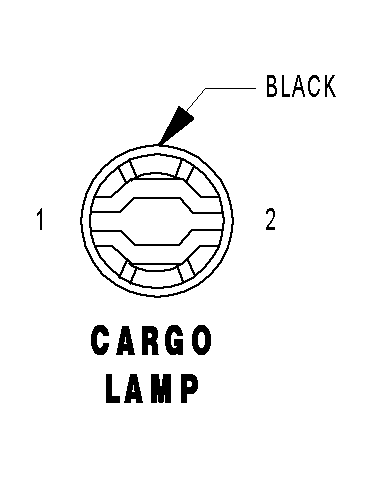

CARGO LAMP - BLACK 2 WAY

GCPL580070Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 M1 18PK FUSED B(+)
2 G78 22TN/BK DECKLID AJAR SWITCH SENSE
