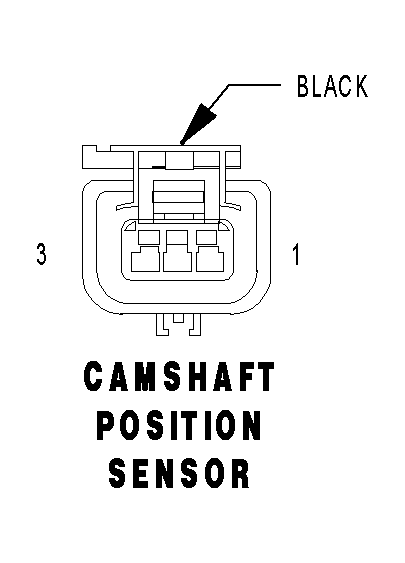

Camshaft Position Sensor Connector End View
CAMSHAFT POSITION SENSOR - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K7 20OR (2.0L) |
5 VOLT SUPPLY |
| 1 |
K6 20VT/WT (2.4L TURBO) |
5 VOLT SUPPLY |
| 2 |
K4 20BK/LB (2.0L) |
SENSOR GROUND |
| 2 |
K167 20BR/YL (2.4L TURBO) |
SENSOR GROUND 2 |
| 3 |
K44 20TN/YL |
CMP SIGNAL |
