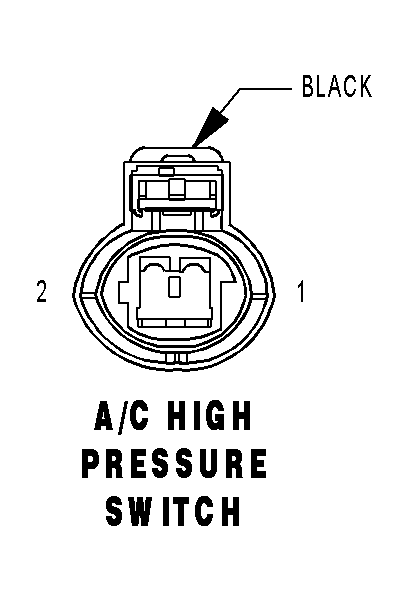

A/C High Pressure Switch Connector End View
A/C HIGH PRESSURE SWITCH - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C20 20BR/OR (2.0L) |
A/C SWITCH SENSE |
| 1 |
C20 20BR (2.4L TURBO) |
A/C SWITCH SENSE |
| 2 |
C22 20DB/WT |
PRESSURE SWITCH OUTPUT |
