A/C Compressor Clutch Connector End View

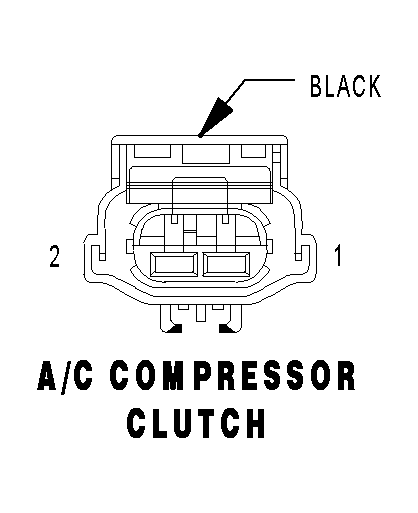

A/C COMPRESSOR CLUTCH - BLACK 2 WAY

GCPL580001Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C3 20DB/BK A/C CLUTCH RELAY OUTPUT
2 Z1 20BK GROUND
