Control Unit: Removal

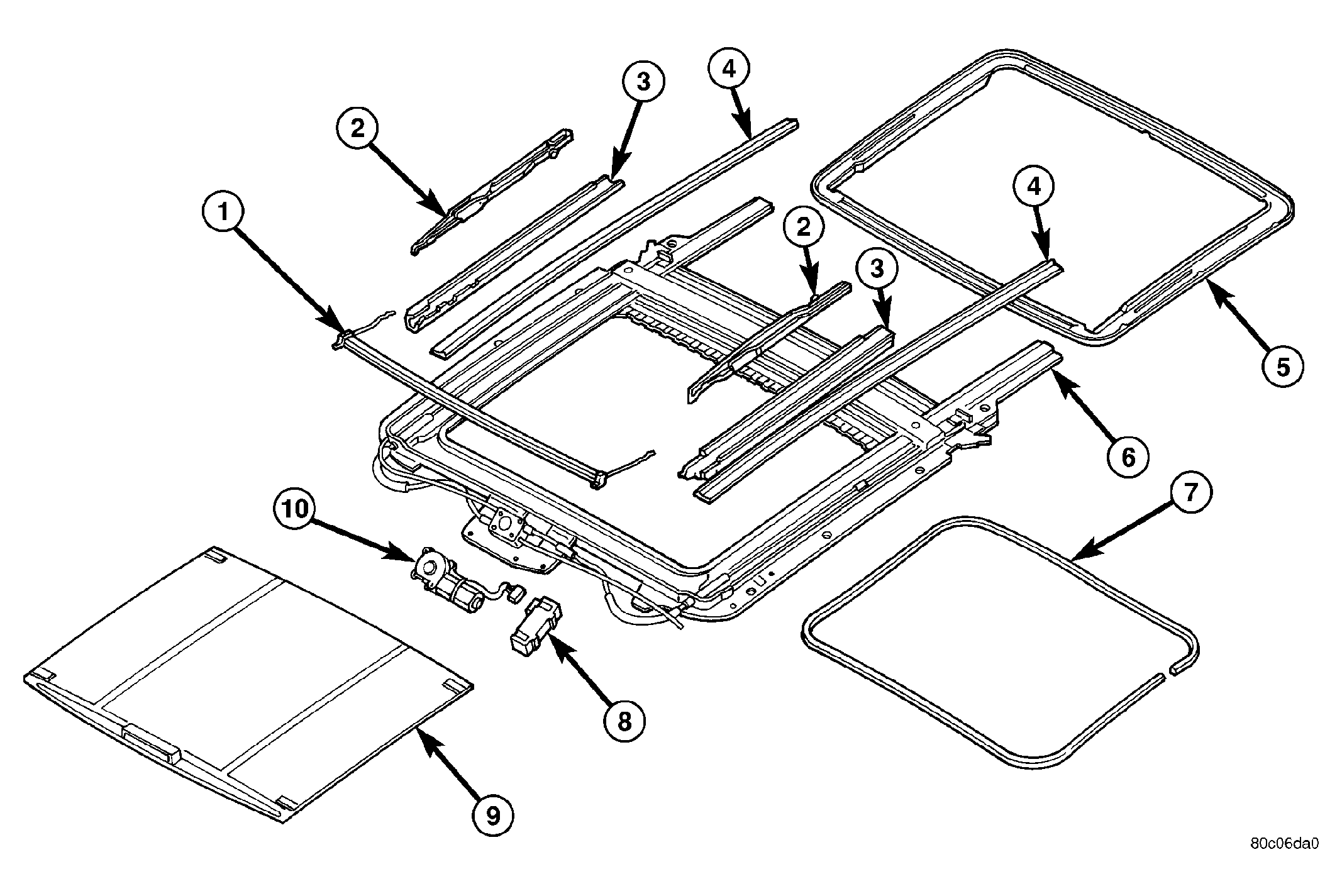

  1. Remove sun visors, front grab handles, A-pillar screw, Right upper B-pillar trim. Disengage front door weatherstrip from headliner, pull headliner down to access control unit. See Figure.
  2. Disconnect wire connector from control unit.
  3. Slide control unit up and forward and remove.
