Instrument Panel Assembly: Removal: Notes
- Disconnect and isolate the battery negative cable.
- Push seats back to their full back position.
- Using a trim stick (special tool #C-4755) or equivalent, gently pry out on left and right A-pillar trim moldings and remove.
- Remove the instrument panel top cover. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL)
- Gently pull up on cluster bezel and remove from vehicle.
- Remove two screws. Then gently pull rearward on left lower instrument panel cover and remove from vehicle.CAUTION: Lock the steering wheel in the straight ahead position. This will prevent clock spring damage when the steering wheel rotates freely.
- Remove steering column. (Refer to STEERING/COLUMN - REMOVAL)
- Remove left and right instrument panel end covers.
- Remove left and right cowl side panels.
- Remove floor console. (Refer to BODY/INTERIOR/FLOOR CONSOLE - REMOVAL)
- Depress the sides of the Data Link Connector (DLC) and remove from instrument panel reinforcement.
- Remove two center support mounting bolts.
- Remove left and right A-pillar mounting bolts, two on each side.
- Disconnect right side antenna connector.

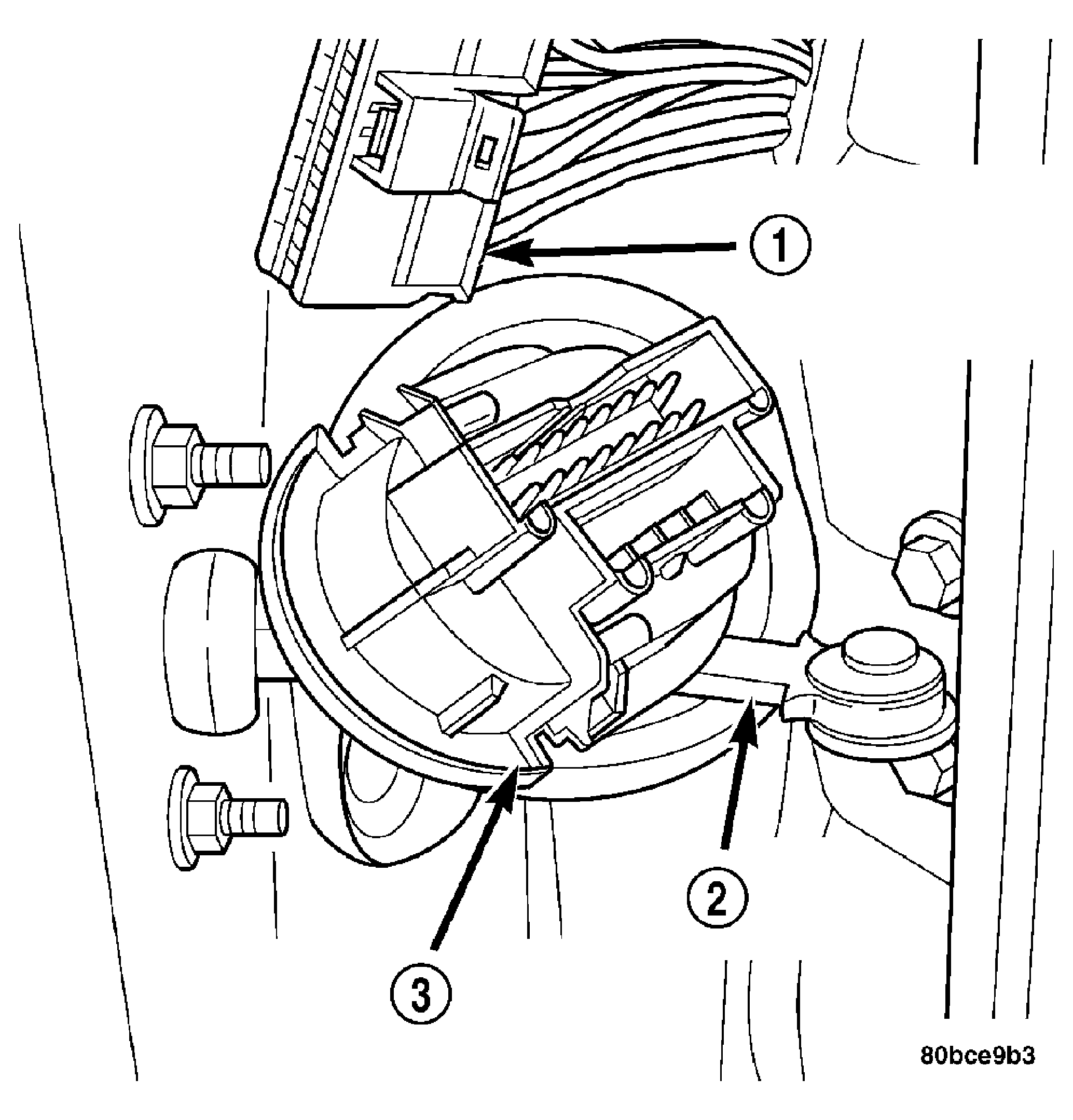

- Remove left and right A-pillar door harness connectors. See Fig 1.

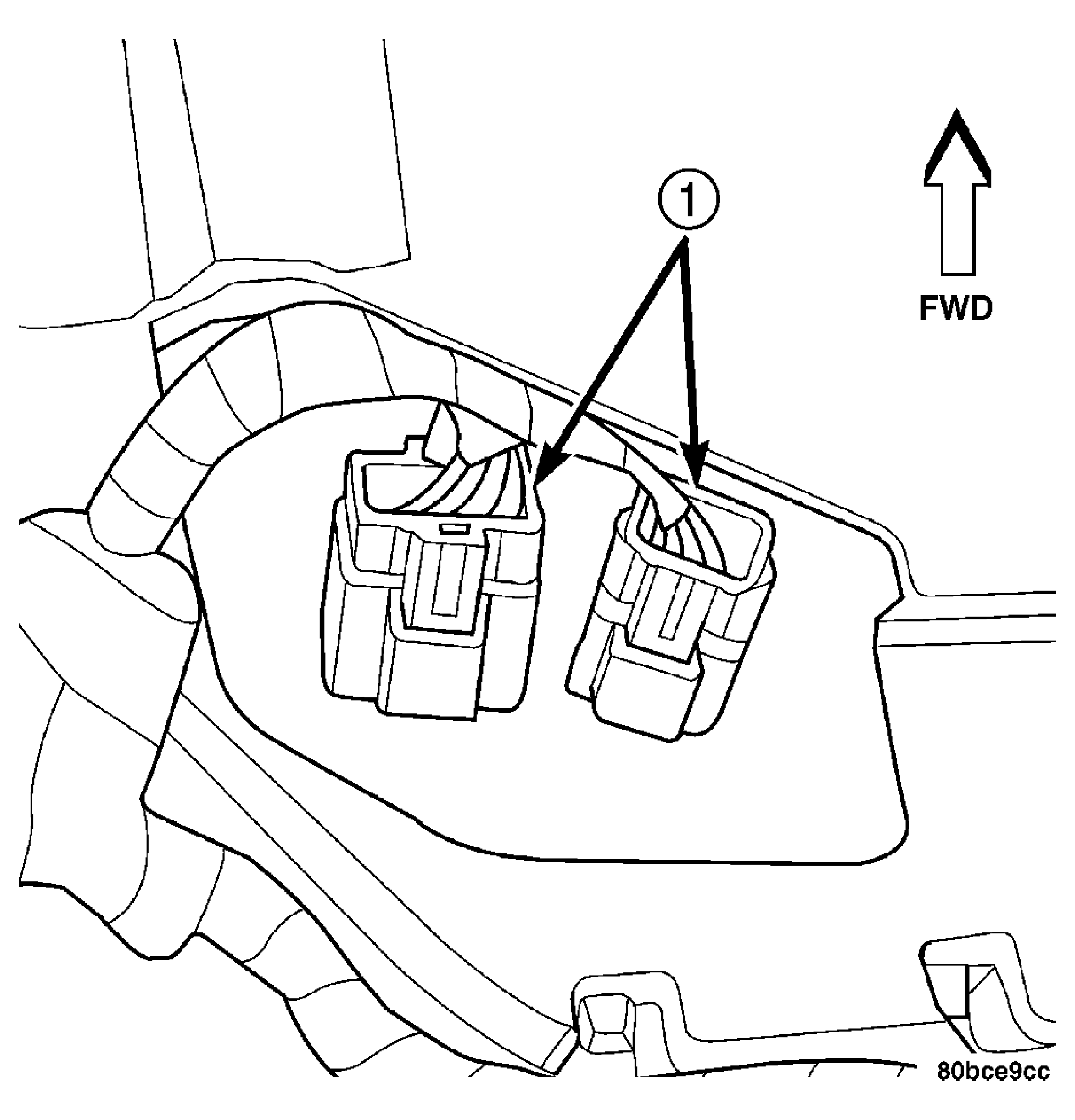

1 - INSTRUMENT PANEL HARNESS CONNECTOR 2 - DOOR CHECK STRAP 3 - DOOR HARNESS CONNECTOR - Disconnect two harness connectors to HVAC at right top instrument panel. See Fig 2.
1 - HVAC HARNESS CONNECTORS - Disconnect one left side harness connector at top left of instrument panel for vanity and rear view mirrors.
- Pull off the HVAC control head knobs.
- Remove both A/C outlet barrels.
- Remove two screws retaining the top front of the center bezel.
- Using a trim stick or equivalent, gently pry out on the instrument panel center bezel and remove.
- Remove the two retaining screws to the HVAC control head.
- Disconnect the one instrument panel wire harness connector.
- Disconnect the one vacuum harness connector.

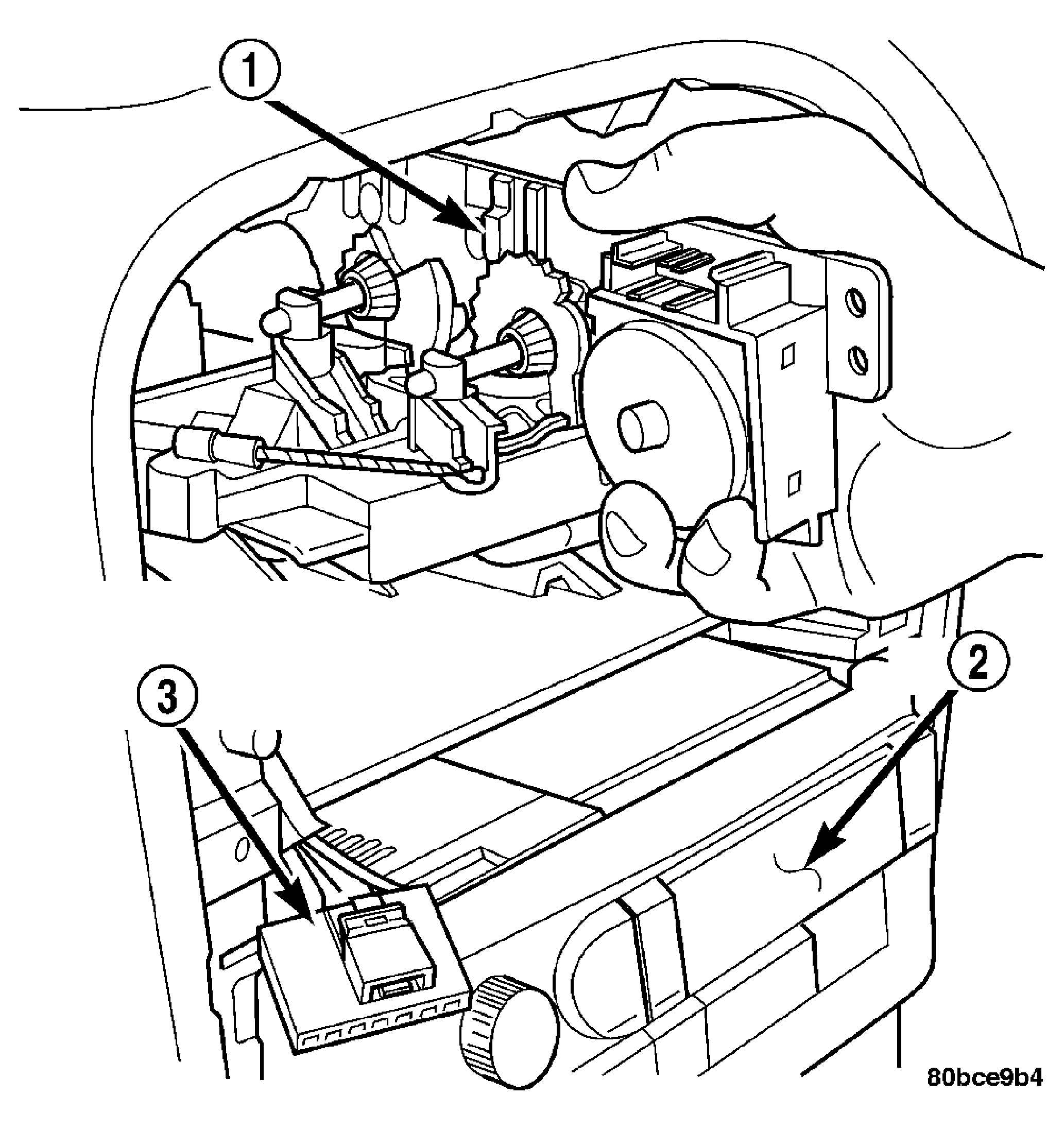

- Pull HVAC control head out of instrument panel, twist 90° and push back through the opening. See Fig 3. Do not disconnect the control cables.
1 - HVAC CONTROL HEAD 2 - RADIO 3 - HVAC CONTROL HEAD HARNESS CONNECTOR - Disconnect the center console wiring:
- Airbag Control Module (ACM)
- Parking Brake Warning Lamp Switch
- Transmission Range Indicator Lamp
- Shift Interlock Cable (ATX)
- With help from an assistant, remove two bolts on top of the brake pedal support bracket. Pull rearward on instrument panel assembly and remove from vehicle.

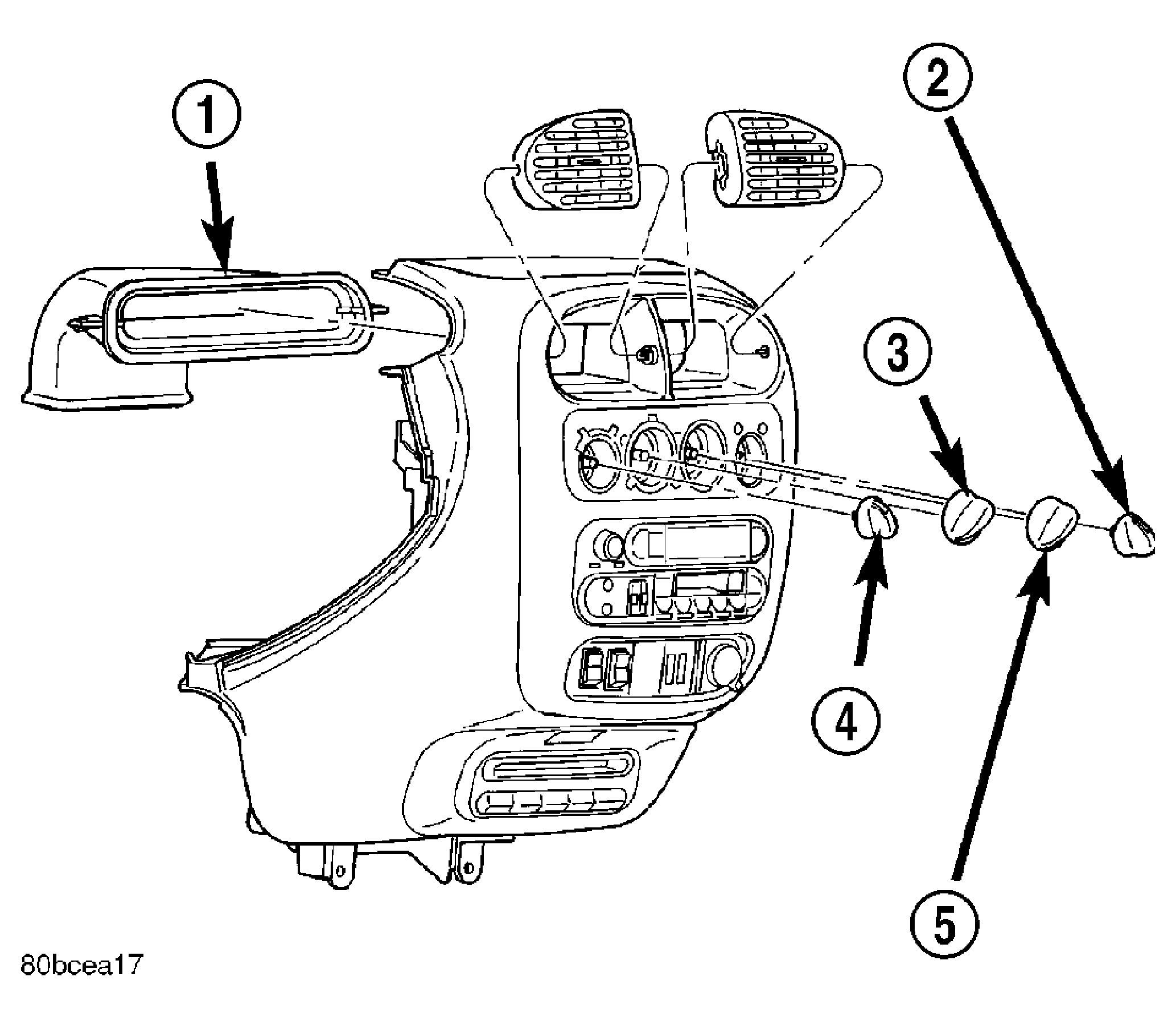

- Remove center A/C duct from the instrument panel. See Figure.

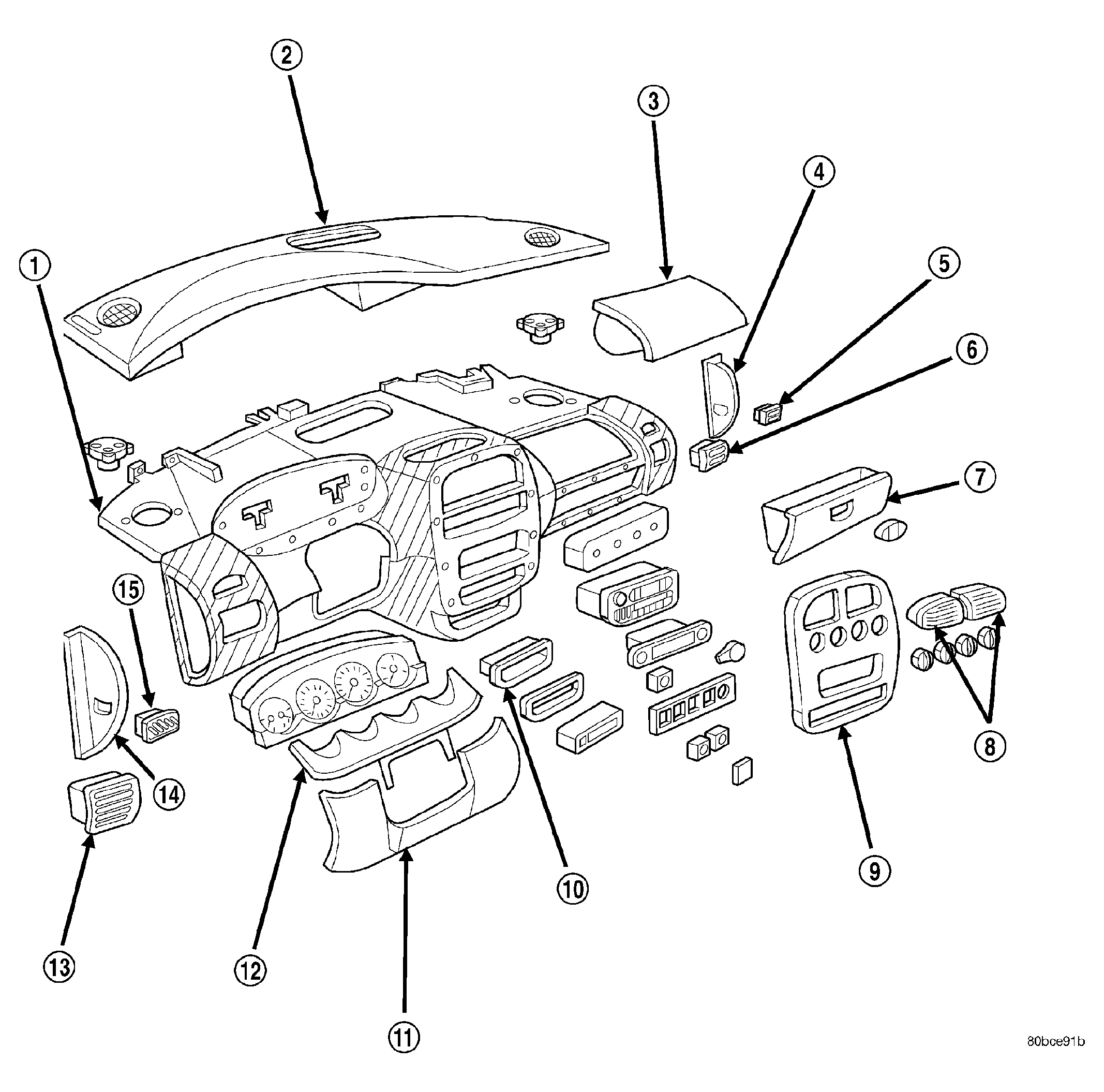

If replacing instrument panel, transfer parts as necessary. See Fig 4.
| 1 - INSTRUMENT PANEL ASSEMBLY | 9 - BEZEL INSTRUMENT PANEL, CENTER |
| 2 - TOP COVER ASSEMBLY | 10 - BIN, LOWER STORAGE |
| 3 - MODULE, PASSENGER SIDE AIRBAG | 11 - STEERING COLUMN COVER ASSEMBLY |
| 4 - END CAP, RIGHT | 12 - CLUSTER BEZEL |
| 5 - DEMISTER GRILLE, RIGHT | 13 - LOUVER, AIR OUTLET, LEFT |
| 6 - LOUVER, AIR OUTLET, RIGHT | 14 - END CAP, LEFT |
| 7 - DOOR, GLOVE BOX | 15 - DEMISTER GRILLE, LEFT |
| 8 - LOUVER, AIR OUTLET, CENTER |
