Compass / Temperature Mirror

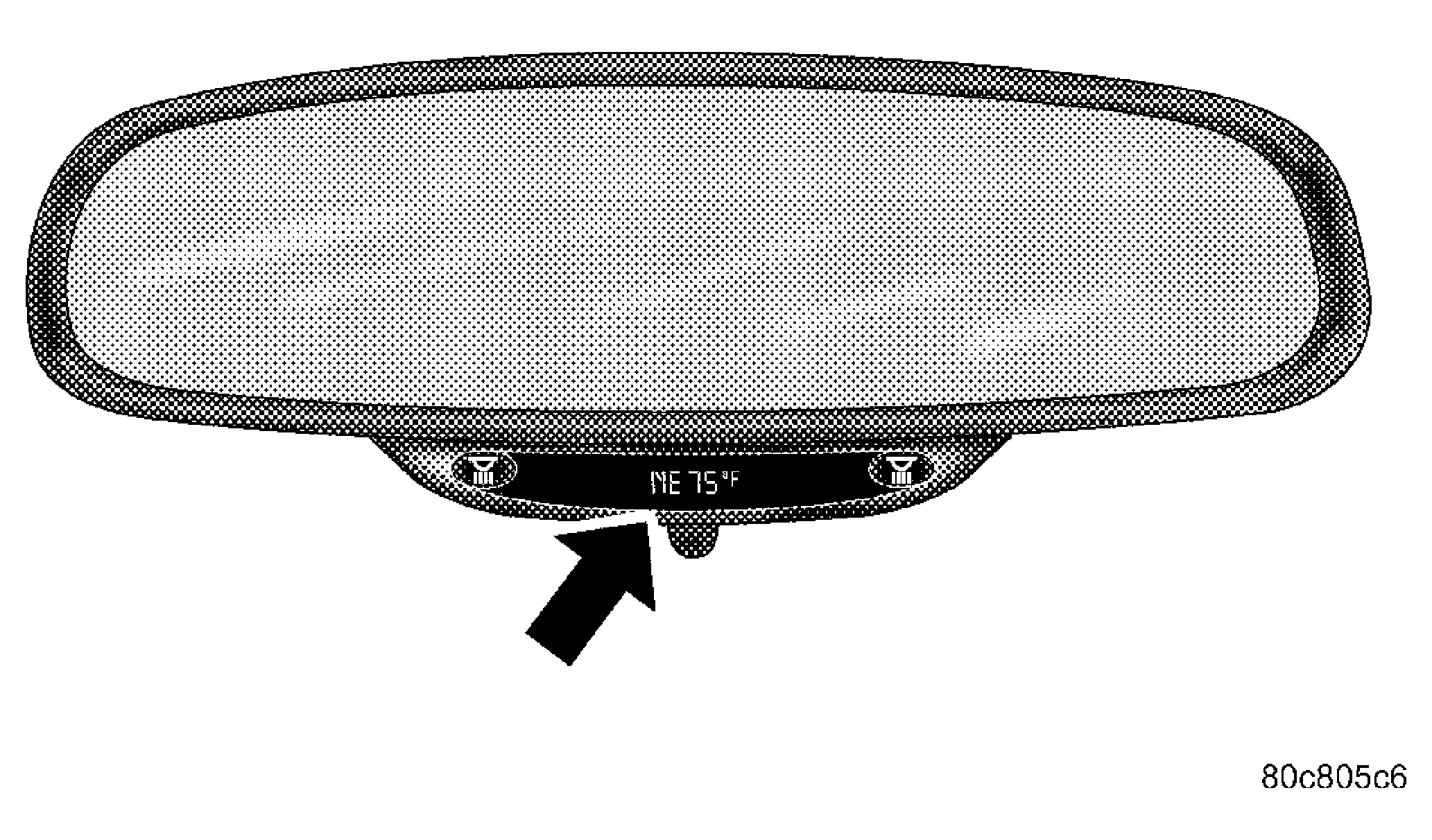

The Compass/Temperature Mirror consists of an electronic control module with a vacuum fluorescent display (VFD) screen, two map/reading lamps and function switches. The electronic module displays the outside temperature and one of eight compass headings to indicate the direction the vehicle is facing. The compass/temperature mirror transmits and receives data on the PCI Data Bus Circuitry. See Fig 1.
