Home >> Dodge and Ram >> 2005 >> Neon SXT, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine Cooling System >> Engine >> Coolant Recovery Container - 2.0L >> Installation

Coolant Recovery Container - 2.0L: Installation

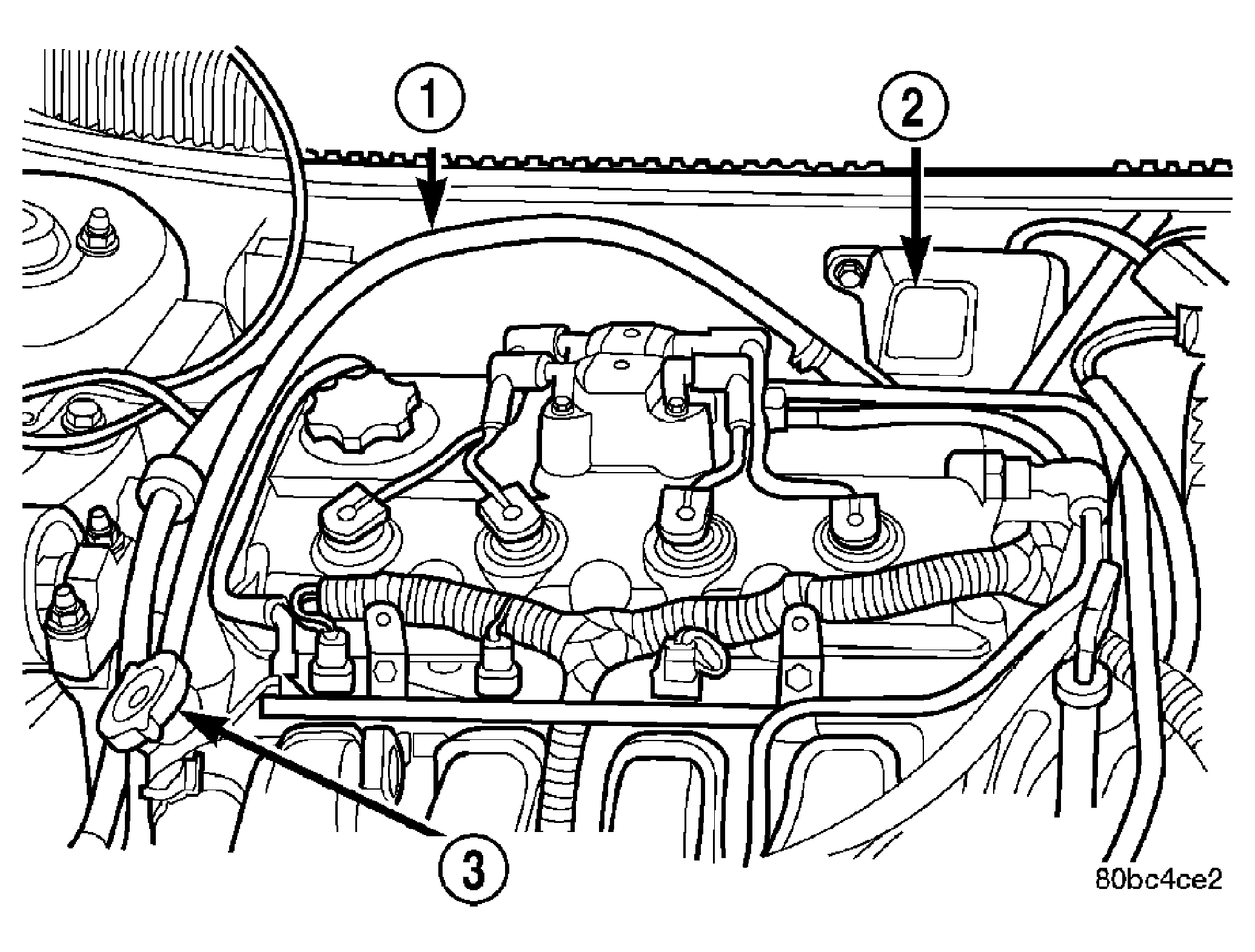

  1. Install coolant recovery container and tighten fasteners to 4 N.m (35 in. lbs.). See Figure.
  2. Connect recovery hose to water outlet connector/thermostat housing. See Figure.
  3. Fill container to proper level (Refer to COOLING/ENGINE - STANDARD PROCEDURE) .
