3.7L Engine

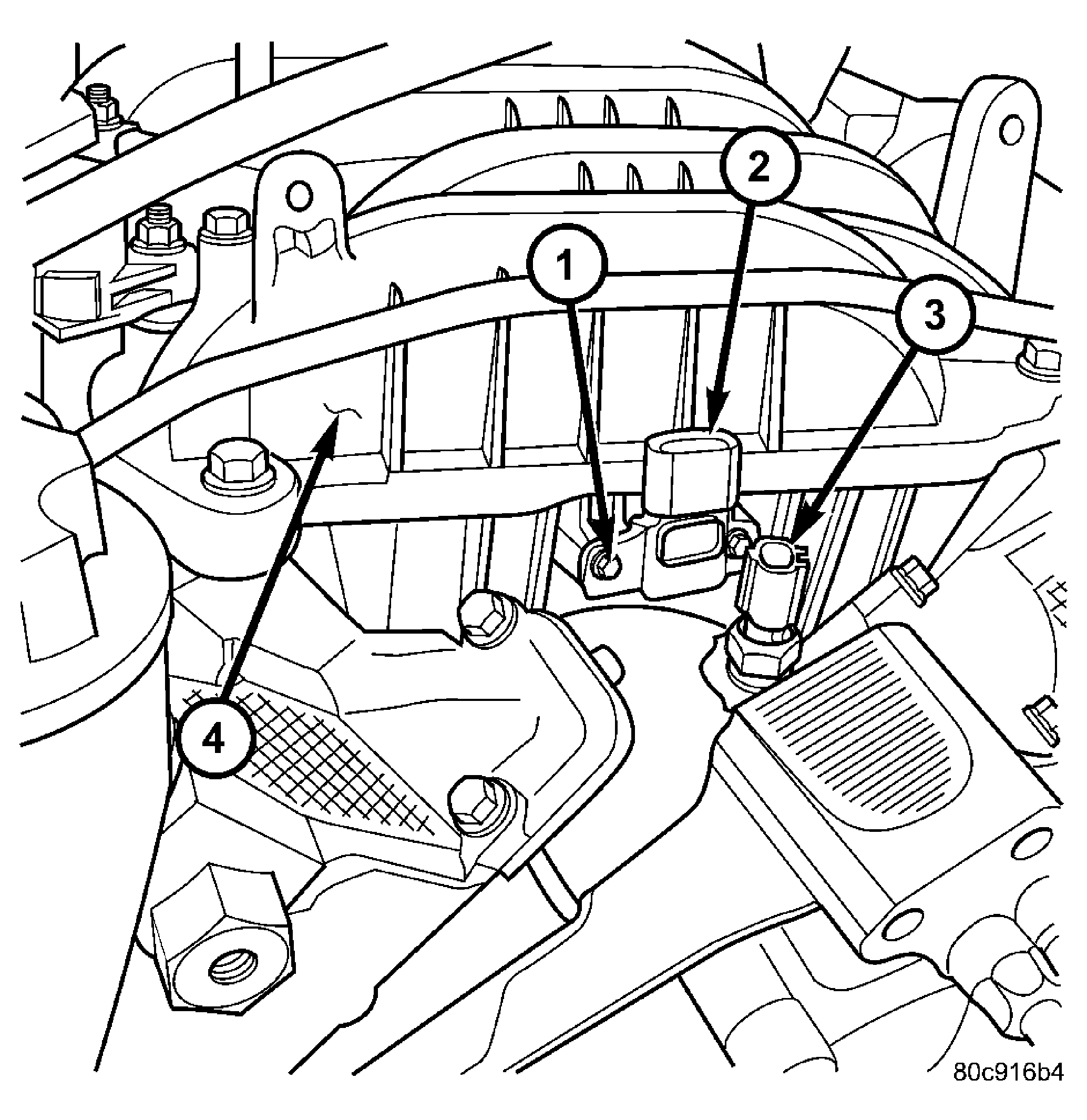

Fig 1: MAP Sensor/ECT Sensor - 3.7L
GC0010121Courtesy of DAIMLERCHRYSLER CORP.
  1. Apply thread sealant to sensor threads.
  2. Install engine coolant sensor into intake manifold. (3). Tighten sensor to 11 N.m (97.3 in. lbs.) torque.
  3. Connect the electrical connector.
  4. Fill the cooling system (Refer to COOLING - STANDARD PROCEDURE) .
