Engine Cooling System & Automatic Transmission Cooling System: Engine: Radiator: Removal

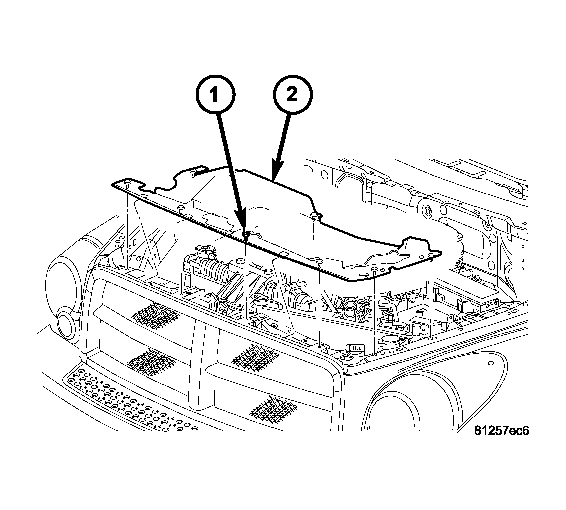

Fig 1: Push Pins & Seal

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect battery negative cable.
2. Drain cooling system (Refer to COOLING - STANDARD PROCEDURE)
3. Remove push pins (1) and the upper condenser/radiator seal (2).
4. Remove air filter housing assembly. Refer to appropriate Engine SERVICE INFORMATION article.

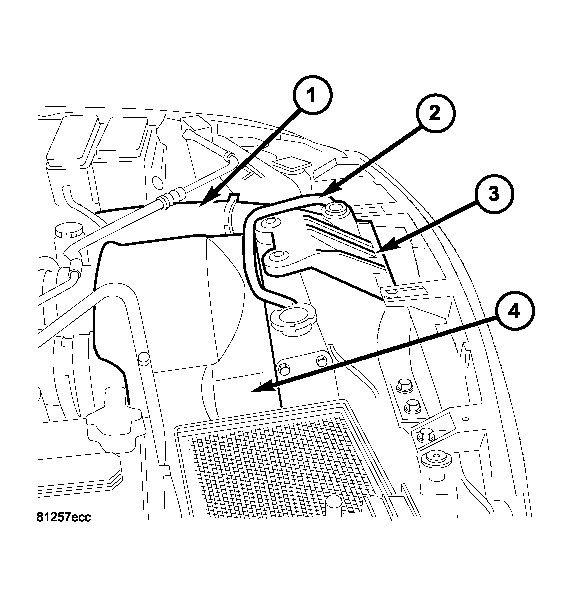

   Fig 2: Locating Upper Radiator Hose, Overflow Tube, Radiator Support & Fan Shroud

   Courtesy of DAIMLERCHRYSLER CORP.
5. Remove upper radiator hose (1).
6. Remove overflow tube (2).
7. Remove radiator fan shroud (4) from the radiator and position over the radiator fan.
8. Remove the upper radiator support (3).
9. Raise vehicle.

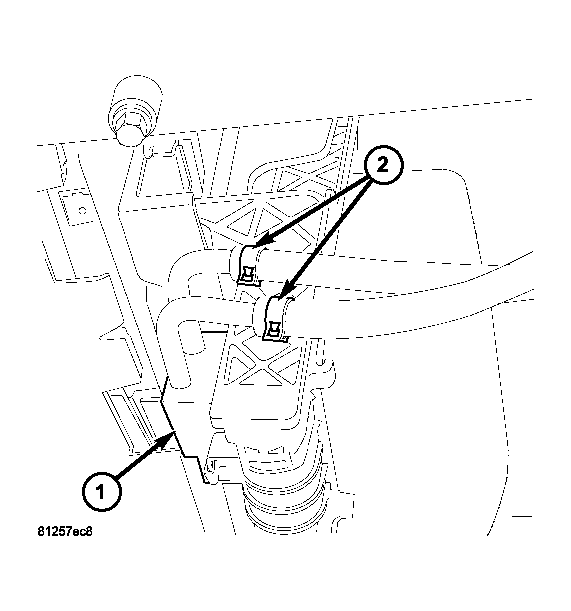

   Fig 3: Power Steering Cooler Lines

   Courtesy of DAIMLERCHRYSLER CORP.
10. Disconnect the power steering cooler lines (2).

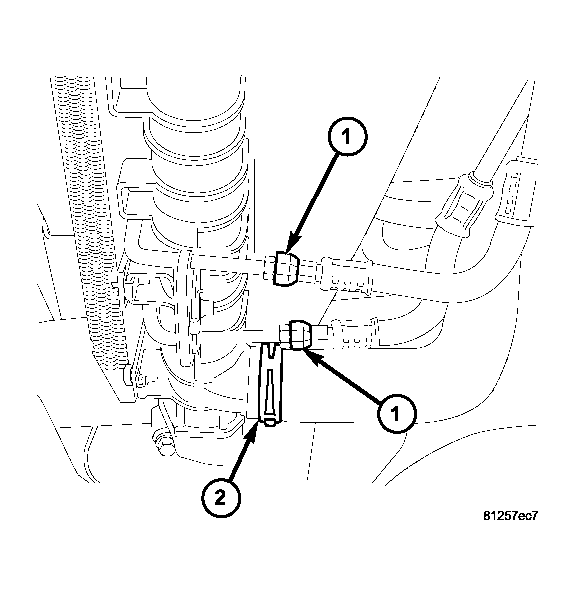

    Fig 4: Transmission Cooler Lines

    Courtesy of DAIMLERCHRYSLER CORP.
11. Disconnect the transmission cooler lines (1).
12. Remove the lower radiator hose (2).
13. Lower vehicle.
14. Remove upper radiator mount.
15. Remove LH and RH radiator side seals.
16. Remove radiator.
17. Remove power steering cooler form the radiator, if necessary.
18. Remove transmission cooler from radiator, if necessary.
