Engine Cooling System & Automatic Transmission Cooling System: Engine: Radiator: Description

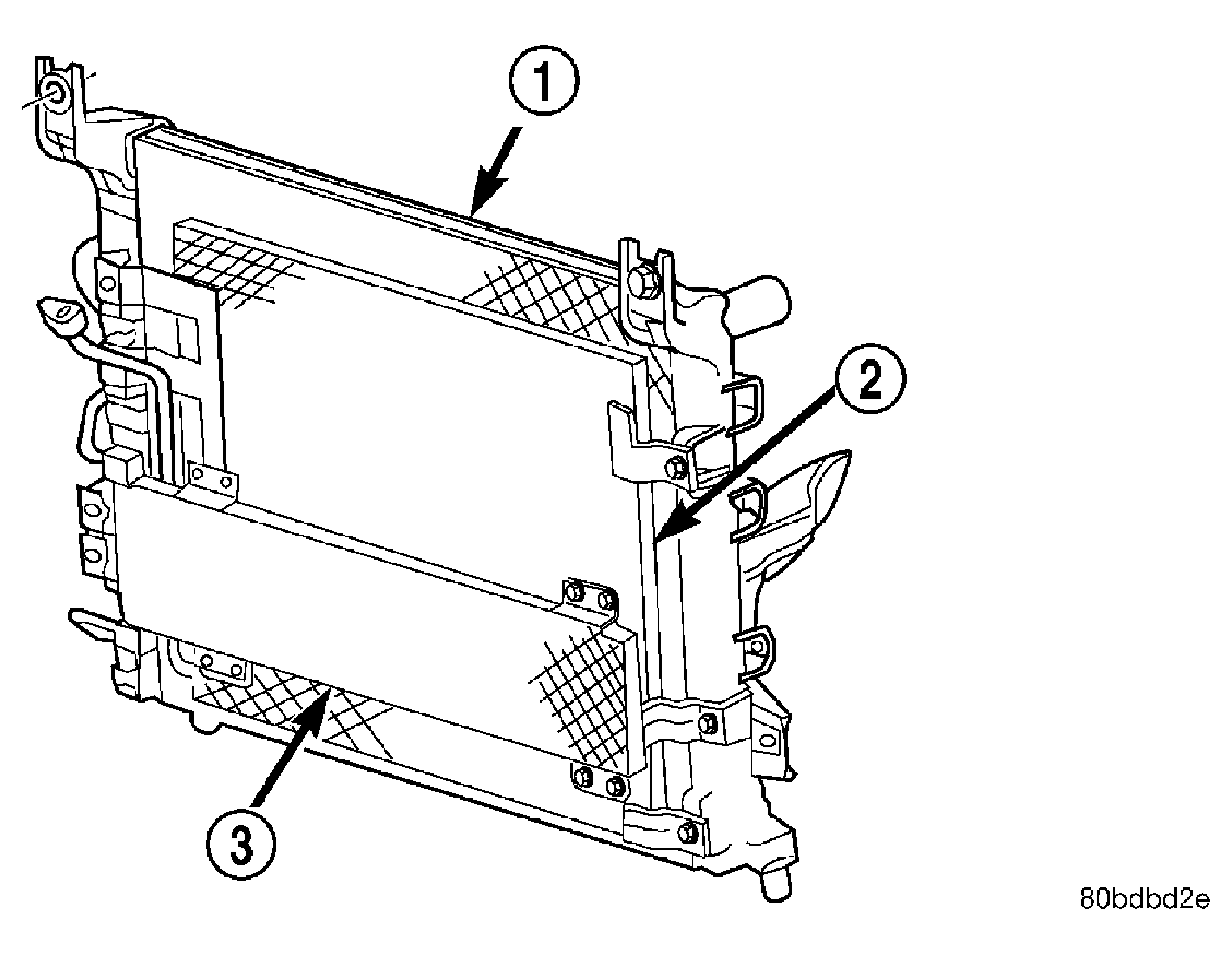

Fig 1: Radiator - Typical

Courtesy of DAIMLERCHRYSLER CORP.

The radiator (1) is a aluminum cross-flow design with horizontal tubes through the radiator core and vertical plastic side tanks.
