Heater-Engine Block: Removal

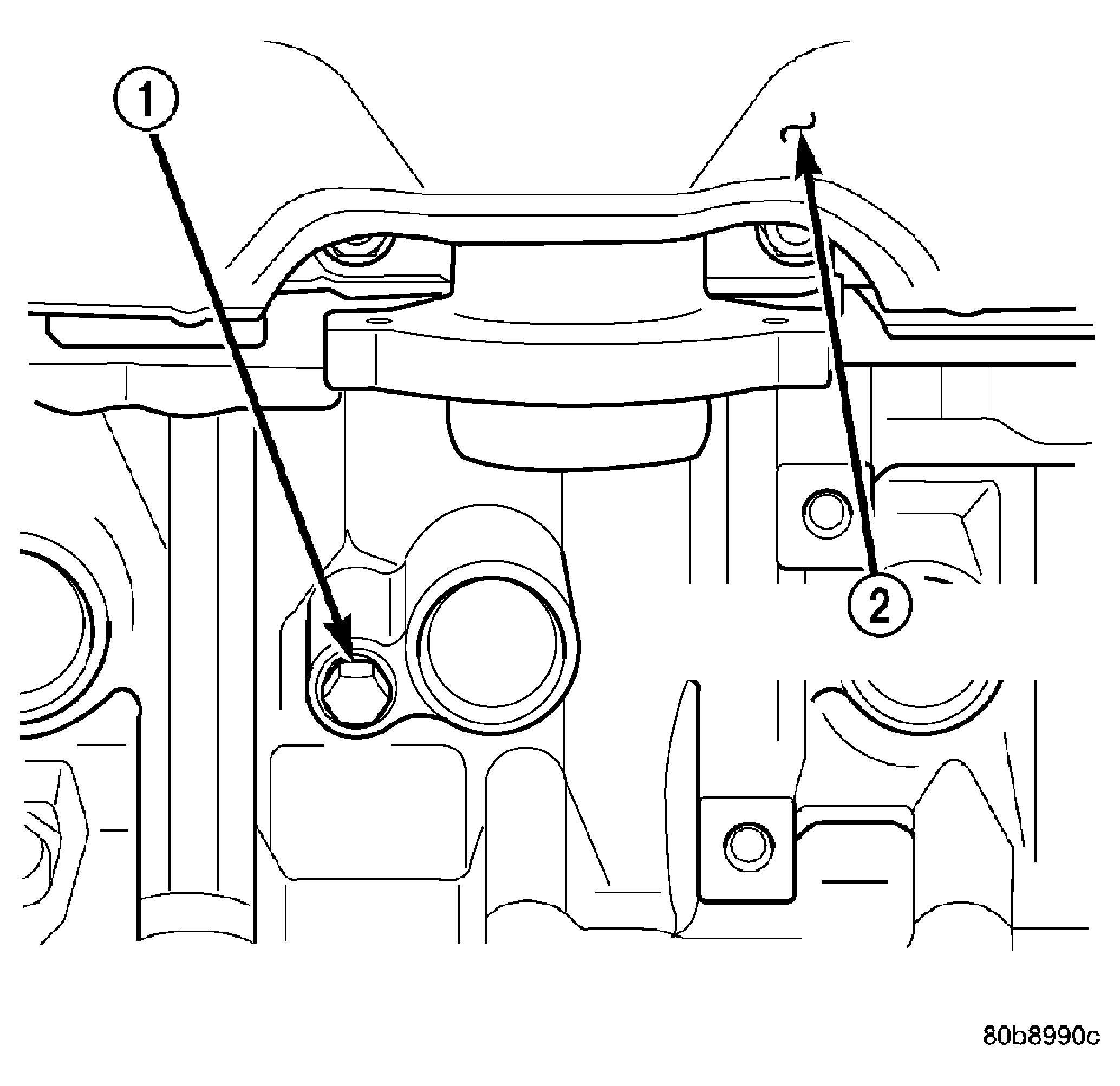

Fig 1: Removing Cylinder Drain Plug
GC0010118Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery cable from battery.
  2. Drain coolant from radiator (Refer to COOLING - STANDARD PROCEDURE) .
  3. Raise vehicle.
  4. Remove engine cylinder block drain plug(s) (1) located on the sides of cylinder block above the oil pan rail.

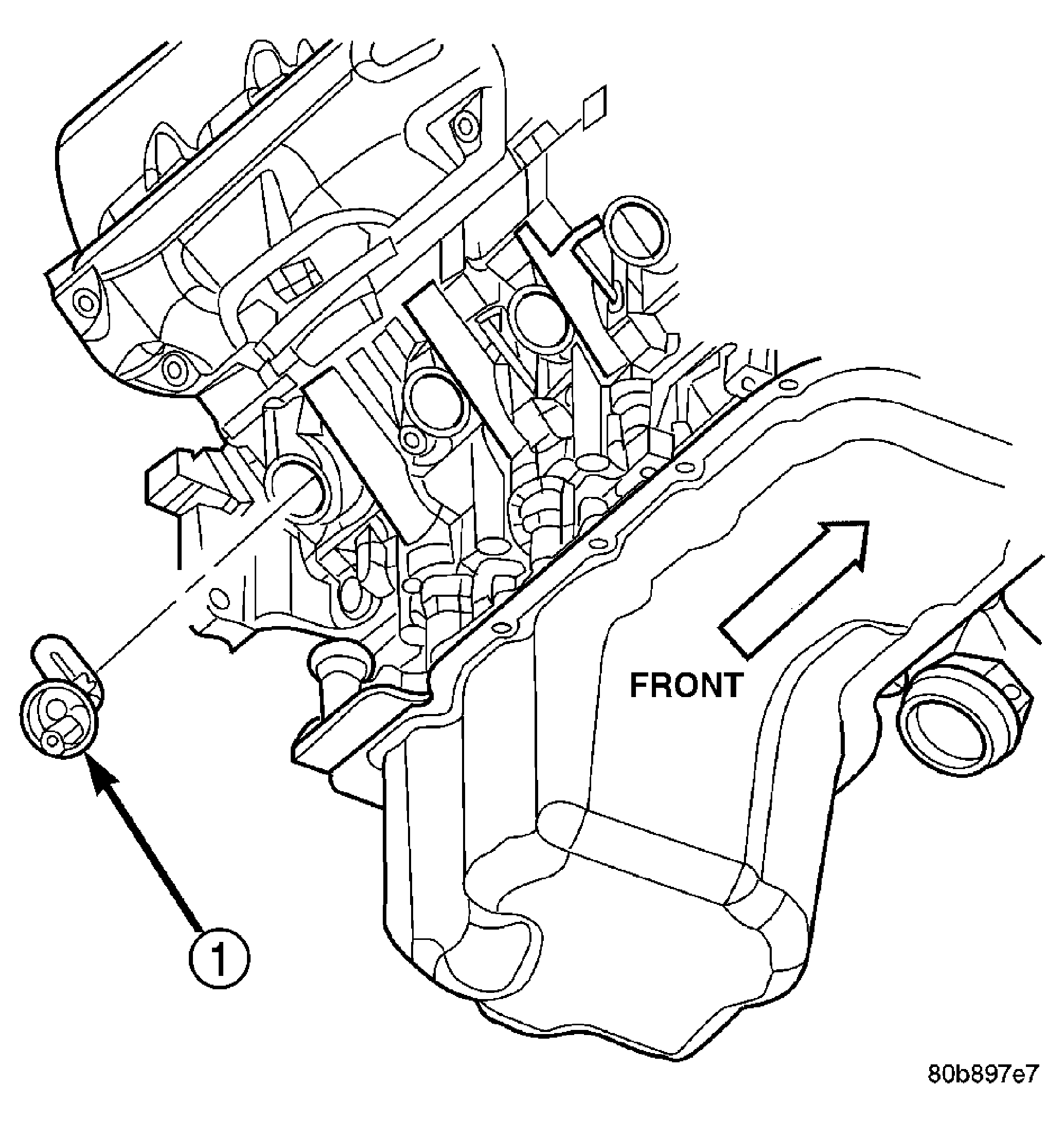

    Fig 2: Removing Heater Assembly
    GC0010119Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove power cord from block heater.
  6. Loosen screw at center of block heater. Remove heater assembly (1).
