Engine Cooling System & Automatic Transmission Cooling System: Cooling: Description
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - LH CYL. HEAD |
| 2 - BLEED |
| 3 - THERMOSTAT LOCATION |
| 4 - RH CYL. HEAD |
| 5 - RH BANK CYL. BLOCK |
| 6 - LH BANK CYL. BLOCK |
| 7 - COOLANT TEMP. SENSOR |
| 8 - FROM HEATER CORE |
| 9 - TO HEATER CORE |

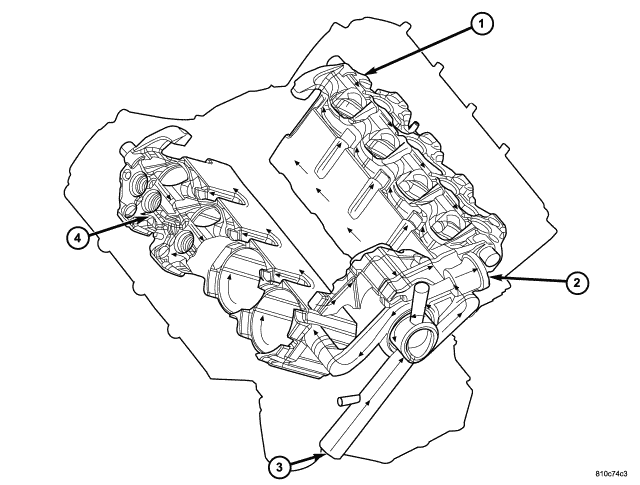

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - LH CYLINDER HEAD |
| 2 - TO RADIATOR |
| 3 - FROM RADIATOR |
| 4 - TO RH CYLINDER HEAD |
The cooling system consists of :
- Radiator
- Cooling fan (mechanical/Electrical)
- Thermal viscous fan drive
- Fan shroud
- Radiator pressure cap
- Thermostat
- Coolant reserve/overflow system (integral to upper fan shroud)
- Transmission oil cooler (if equipped with an automatic transmission)
- Coolant
- Water pump
- Hoses and hose clamps
