Gear Shift Lever: Installation

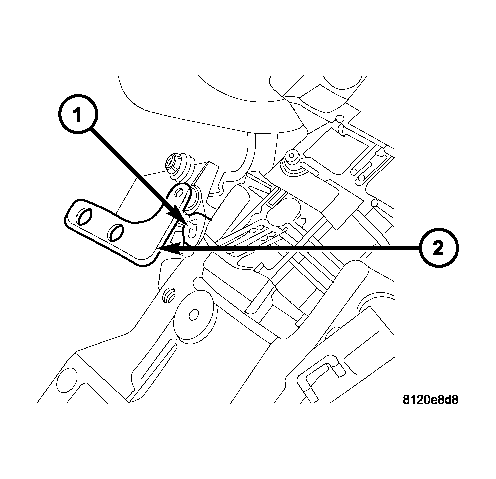

Fig 1: Slider Slot & Lever Assembly
GC0010466Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the lever assembly (2) using care to install the pin in the blocker to slider slot (1) and install the mounting screws and tighten to 12 N.m (105 in. lbs.).
  2. Cycle the key from ACC to RUN and ensure that the blocker does not stick or bind.
  3. Turn the key to the OFF position and ensure that the shifter will not pull from the PARK position.
  4. Connect the tow/haul switch harness.
    NOTE: Route and tie off harness to original location.
  5. Connect the shift cable to the lever.
  6. Ensure the gear shift lever and transmission are in the PARK position and snap the cable adjust clip in place.
    Fig 2: Steering Column Shrouds
    GC0010465Courtesy of DAIMLERCHRYSLER CORP.
  7. Install a new brake light switch (5) (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/BRAKE LAMP SWITCH - INSTALLATION) .
  8. Install the SKIM and halo.
  9. Install the upper (1) and lower (3) column shroud.
  10. Install the tilt lever knob.
  11. Install the column back into place and tighten the four nuts to 28 N.m (250 in. lbs.).
    Fig 3: Steering Column Opening Reinforcement
    GC0010458Courtesy of DAIMLERCHRYSLER CORP.
  12. Install the steering column opening reinforcement (1).
    Fig 4: Steering Column And Cover
    GC0010460Courtesy of DAIMLERCHRYSLER CORP.
  13. Install the steering column opening cover (2).
