Fluid Cooler: Installation

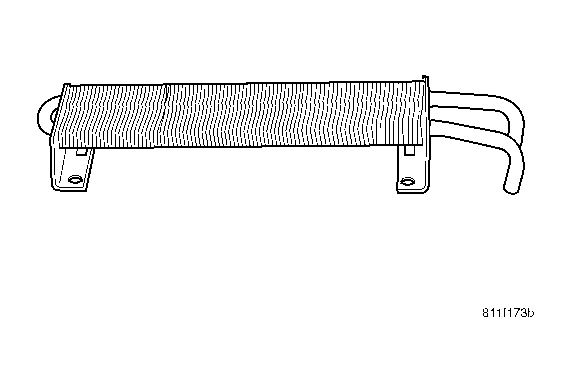

Fig 1: Locating Cooler
GC0010490Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the cooler to the vehicle.

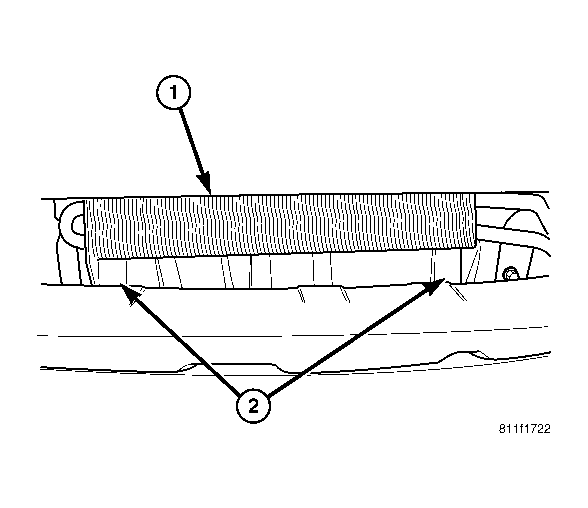

    Fig 2: Locating Cooler Mounting Bolts
    GC0010489Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the cooler mounting nut and bolt (2).

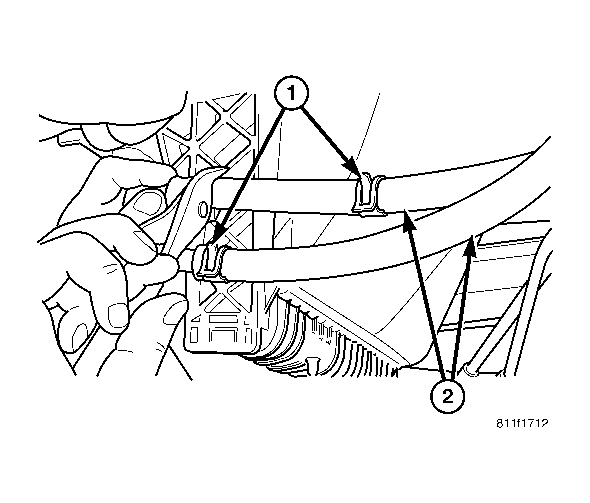

    Fig 3: Locating Clamps
    GC0010488Courtesy of DAIMLERCHRYSLER CORP.
  3. Reconnect the hoses (2) at the cooler.
  4. Reconnect the hose clamps (1).
  5. Remove the support and lower the vehicle.
  6. Refill the power steering system (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
