Seat Belt Buckle: Removal: Front
WARNING:
To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING:
To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.
- Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.
- Remove the front seat and seat track from the floor panel as a unit. (Refer to BODY/SEATS/SEAT - FRONT - REMOVAL) .

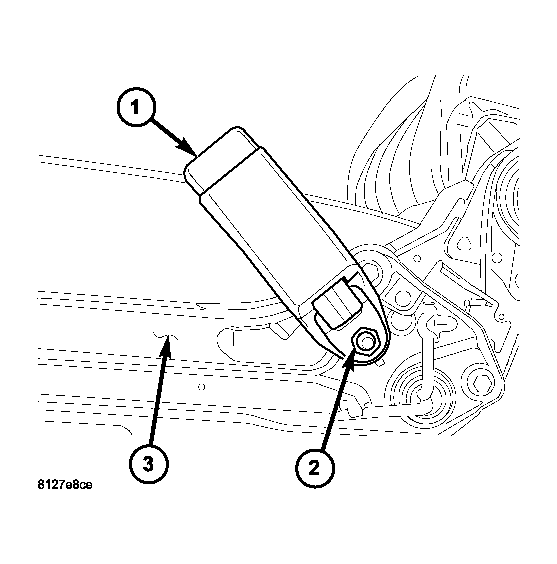

- Remove the screws that secure the seat cushion side shield to the inboard side of the seat cushion frame (3) and remove the shield.
- Remove the nut (2) that secures the front seat belt buckle anchor to the stud near the back of the inboard seat cushion frame.
- Remove the buckle from the seat.
