Circuit Schematic

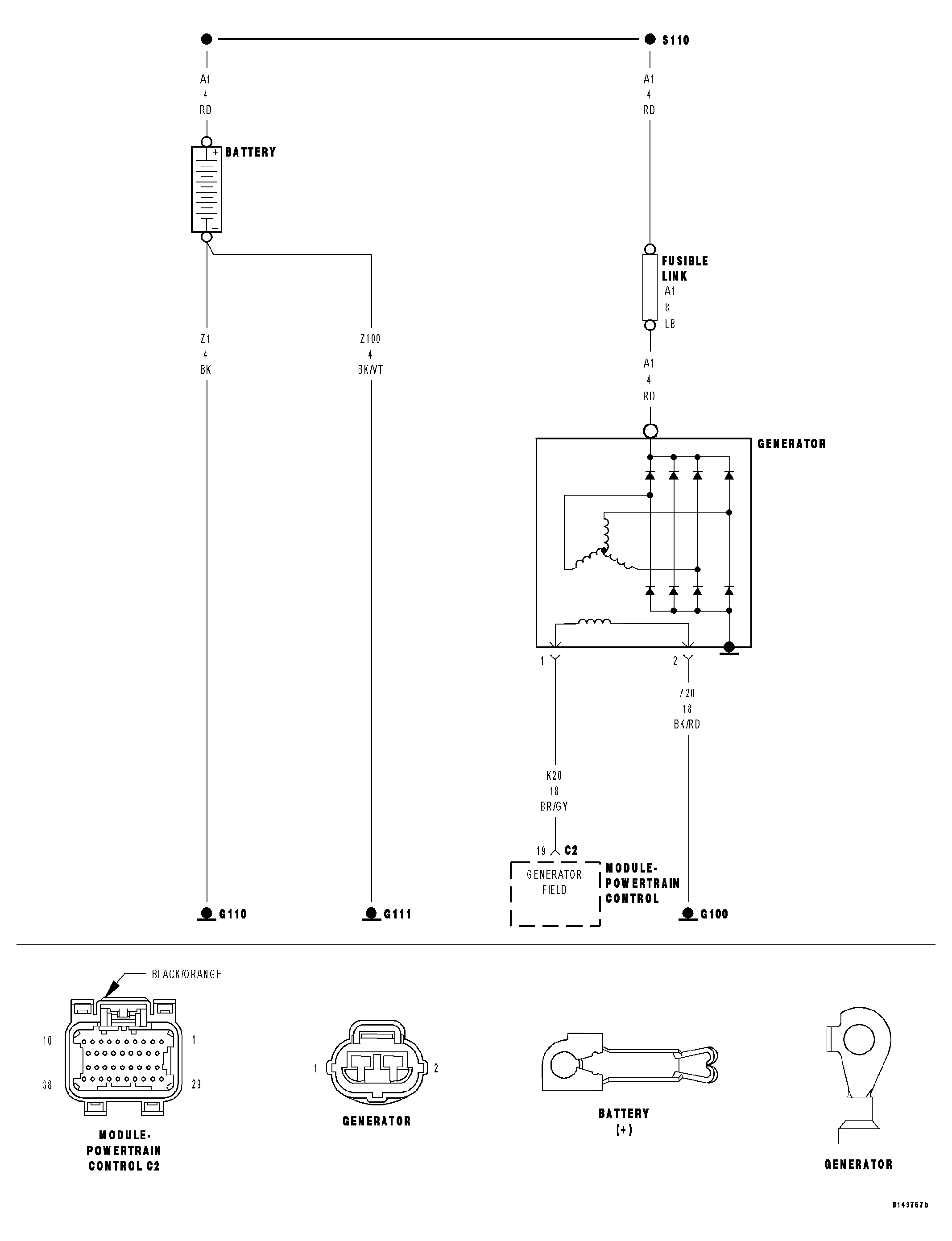

Fig 1: Charging System Circuit Schematic

GC0011607

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
