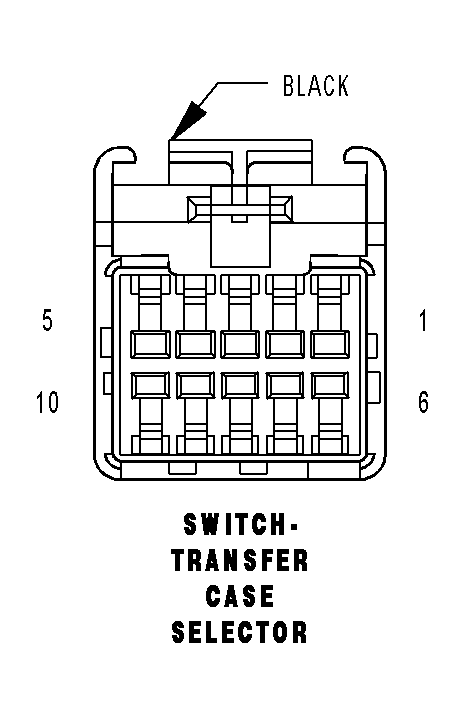

Transfer Case Selector Switch Connector End View
SWITCH-TRANSFER CASE SELECTOR - BLACK 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | K77 20BR/VT | 5 VOLT SELECTOR SWITCH SUPPLY |
| 2 | - | - |
| 3 | K977 20BR/LG | MODE SELECT |
| 4 | E11 20OR/WT | ILT-DIMMING 4X4 |
| 5 | Z973 20BK | GROUND |
| 6 | G95 20VT/BR | 4WD NEUTRAL INDICATOR |
| 7 | F21 20PK/DG | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
