Traction Control Switch Connector End View

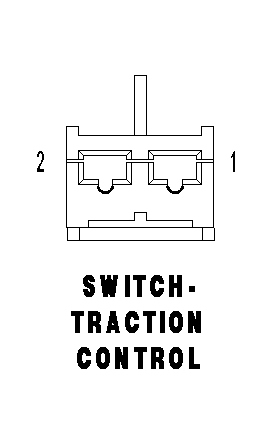

SWITCH-TRACTION CONTROL - 2 WAY

GCHB580355Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
2 Z427 20BK/WT GROUND
