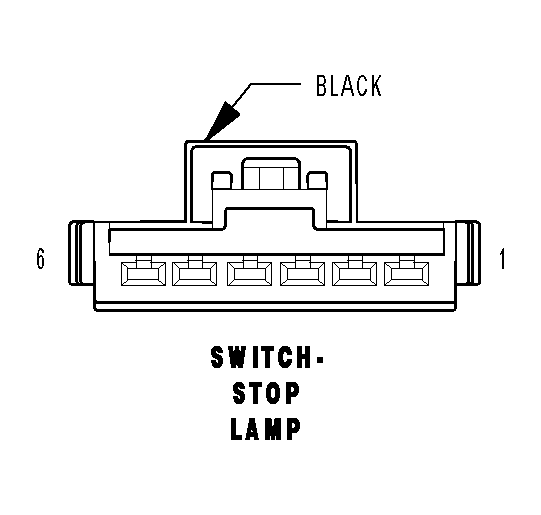

Stop Lamp Switch Connector End View
SWITCH-STOP LAMP - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A103 18GY/RD |
FUSED B(+) |
| 2 |
L50 18WT/TN |
BRAKE LAMP SWITCH OUTPUT |
| 3 |
V30 20VT/WT |
S/C BRAKE SWITCH OUTPUT |
| 4 |
V32 20VT/YL |
S/C SUPPLY |
| 5 |
Z429 20BK/OR |
GROUND |
| 6 |
B29 20DG/WT |
BRAKE SWITCH NO. 1 SIGNAL |
