Starter Connector End View

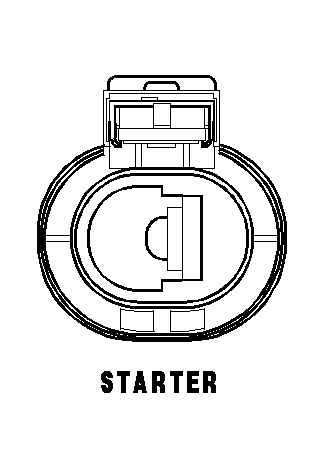

STARTER - 1 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
B1	T750 14GY/YL	ENGINE STARTER MOTOR RELAY OUTPUT
