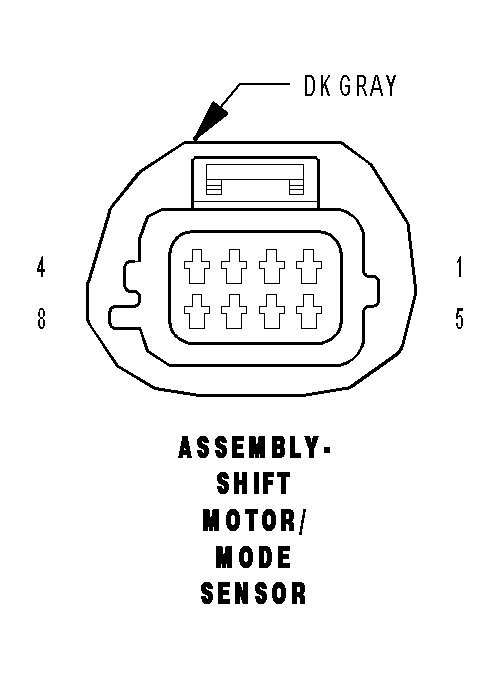

Shift Motor/Mode Sensor Assembly Connector End View
ASSEMBLY-SHIFT MOTOR/MODE SENSOR - DK GRAY 8 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T103 20YL/OR |
5 VOLT SUPPLY |
| 2 |
D201 20WT/DG |
MODE SENSOR A |
| 3 |
G180 20VT/YL |
FCM SENSOR RETURN |
| 4 |
T101 14DG |
SHIFT MOTOR (+) |
| 5 |
T102 14YL |
SHIFT MOTOR (-) |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
