Seat Memory Adjustable Pedals Module Connector End View (C5)

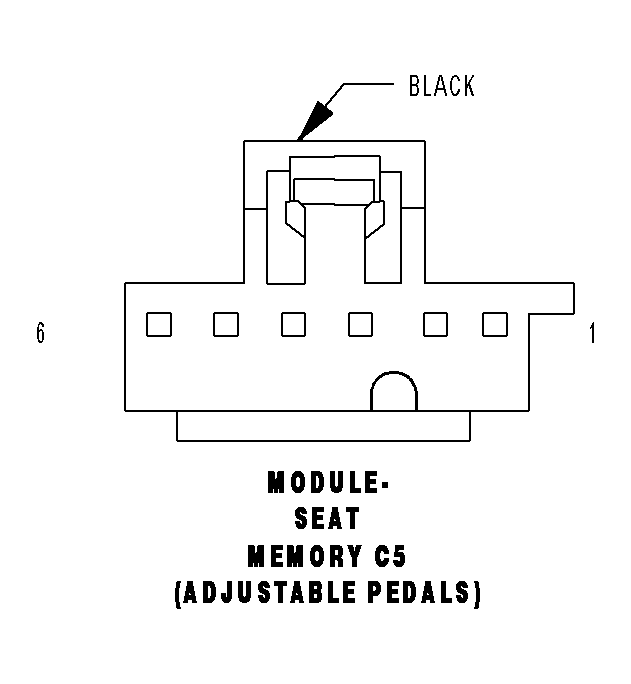

MODULE-SEAT MEMORY C5 (ADJUSTABLE PEDALS) - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
Q100 20OR/WT |
ADJUSTABLE PEDALS SWITCH REARWARD |
| 5 |
Q900 18OR/BK |
ADJUSTABLE PEDALS MOTOR FORWARD |
| 6 |
- |
- |
