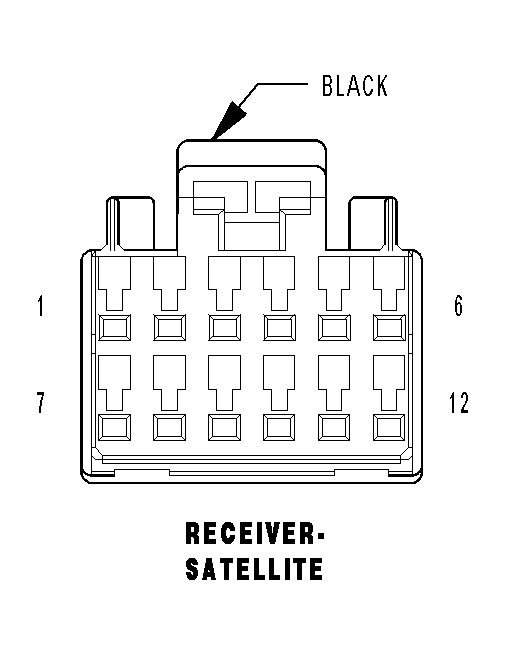

Satellite Receiver Connector End View
RECEIVER-SATELLITE - BLACK 12 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A300 20GY/LG |
FUSED B(+) |
| 2 |
- |
- |
| 3 |
Z960 20BK |
GROUND |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
X17 20DB/WT |
AUDIO SIGNAL LEFT (+) |
| 7 |
D54 20WT |
CAN B BUS (-) |
| 8 |
D55 20WT/OR |
CAN B BUS (+) |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
X917 20LB/RD |
AUDIO SIGNAL COMMON |
| 12 |
X16 20DG/YL |
AUDIO SIGNAL RIGHT (+) |
