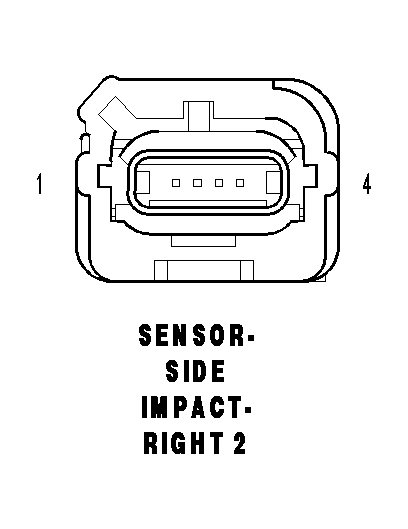

Right Side Impact Sensor 2 Connector End View
SENSOR-SIDE IMPACT-RIGHT 2 - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R18 20LB |
RIGHT SIDE IMPACT SENSOR 2 SIGNAL |
| 2 |
R20 20WT/LG |
RIGHT SIDE IMPACT SENSOR 2 GROUND |
| 3 |
R24 20YL/LB |
RIGHT SIDE IMPACT SENSOR 3 GROUND |
| 4 |
R22 20WT/LB |
RIGHT SIDE IMPACT SENSOR 3 SIGNAL |
