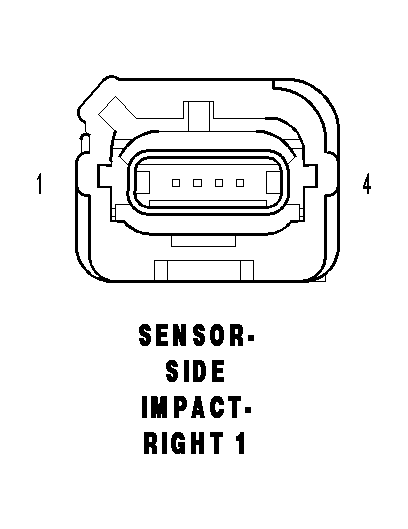

Right Side Impact Sensor 1 Connector End View
SENSOR-SIDE IMPACT-RIGHT 1 - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R14 20TN/LG |
RIGHT SIDE IMPACT SENSOR 1 SIGNAL |
| 2 |
R16 20BR/LG |
RIGHT SIDE IMPACT SENSOR 1 GROUND |
| 3 |
R20 20WT/LG |
RIGHT SIDE IMPACT SENSOR 2 GROUND |
| 4 |
R18 20LB |
RIGHT SIDE IMPACT SENSOR 2 SIGNAL |
