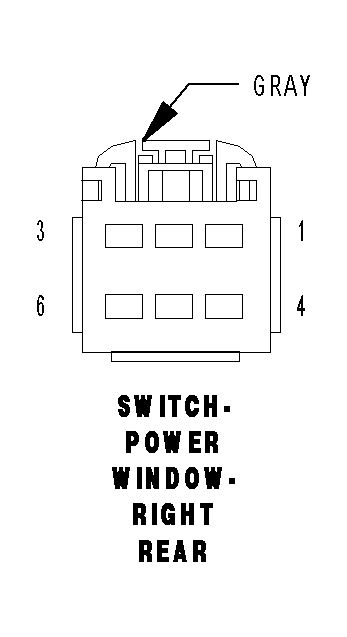

Right Rear Power Window Switch Connector End View
SWITCH-POWER WINDOW-RIGHT REAR - GRAY 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q612 14DB/OR | RIGHT REAR WINDOW DRIVER (DOWN) |
| 2 | Q212 14TN/DG | PASSENGER REAR WINDOW DRIVER (DOWN) |
| 3 | Q112 14VT/TN | PASSENGER REAR WINDOW DRIVER (UP) |
| 4 | Q412 14TN/WT | RIGHT REAR WINDOW DRIVER (UP) |
| 5 | - | - |
| 6 | Q15 14OR/LB | POWER WINDOW SWITCH FEED |
