Right Front Window Motor Connector End View

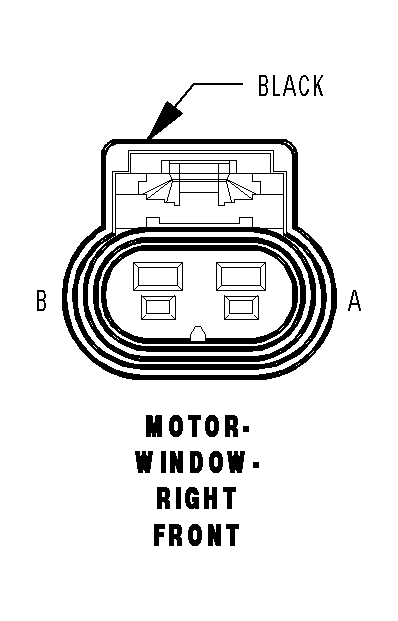

MOTOR-WINDOW-RIGHT FRONT - BLACK 2 WAY

GCHB580527Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
A Q12 14OR/BR RIGHT FRONT WINDOW DRIVER (UP)
B Q22 14WT/PK RIGHT FRONT WINDOW DRIVER (DOWN)
