Right Front Wheel Speed Sensor Connector End View
Right Front Wheel Speed Sensor Connector End View

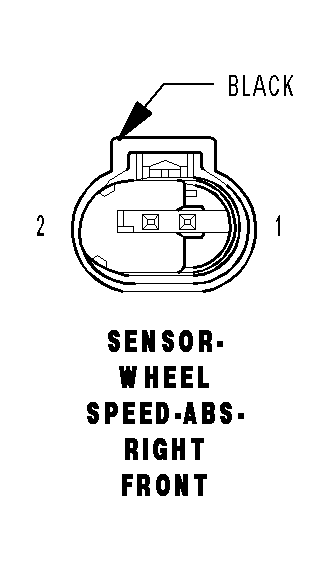

SENSOR-WHEEL SPEED-ABS-RIGHT FRONT - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B6 20DG/WT
RIGHT FRONT WHEEL SPEED SENSOR (-)
2
B7 20DG/VT
RIGHT FRONT WHEEL SPEED SENSOR (+)
Courtesy of DAIMLERCHRYSLER CORP.
