Power Console Outlet Connector End View

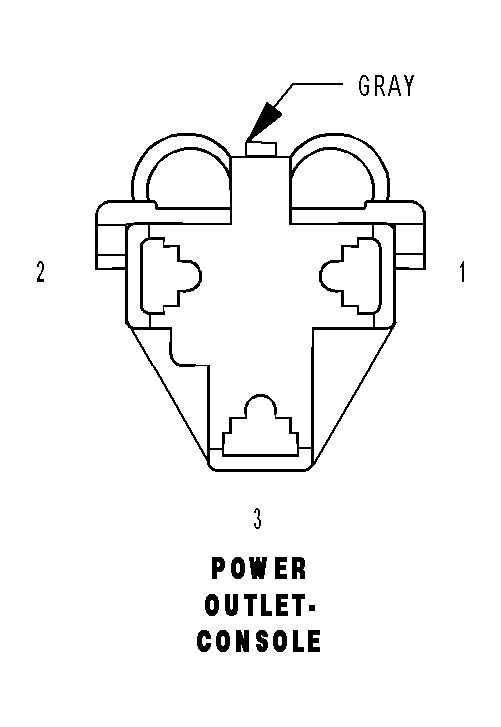

POWER OUTLET-CONSOLE - GRAY 3 WAY

GCHB580534Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 F307 18LB/PK FUSED ACCESSORY RELAY OUTPUT
2 - -
3 Z738 18BK/WT GROUND
