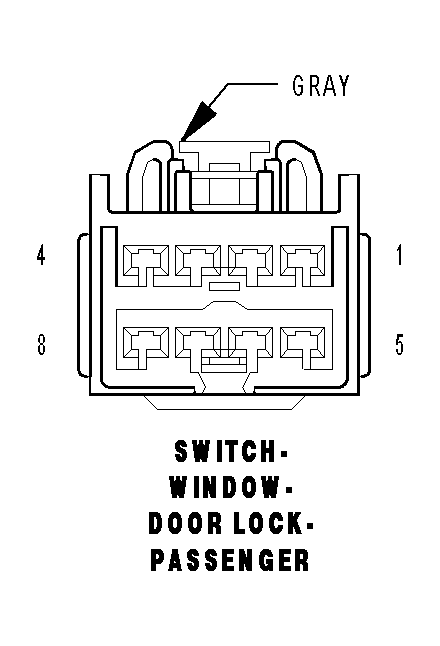

Passenger Window Switch/Door Lock Switch Connector End View
SWITCH-WINDOW/DOOR LOCK-PASSENGER - GRAY 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q26 14OR | MASTER WINDOW SWITCH RIGHT FRONT (DOWN) |
| 2 | Q22 14WT/PK | RIGHT FRONT WINDOW DRIVER (DOWN) |
| 3 | Q12 14OR/BR | RIGHT FRONT WINDOW DRIVER (UP) |
| 4 | Q15 14OR/LB | POWER WINDOW SWITCH FEED |
| 5 | F30 14PK/YL | FUSED ACCESSORY DELAY RELAY OUTPUT |
| 6 | G160 20VT/LG | PASSENGER DOOR LOCK SWITCH MUX |
| 7 | Z974 16BK (EXCEPT MEMORY) | GROUND |
| 7 | G776 20VT/OR (MEMORY) | PASSENGER DOOR LOCK SWITCH RETURN |
| 8 | Q16 14WT/DG | MASTER WINDOW SWITCH RIGHT FRONT (UP) |
