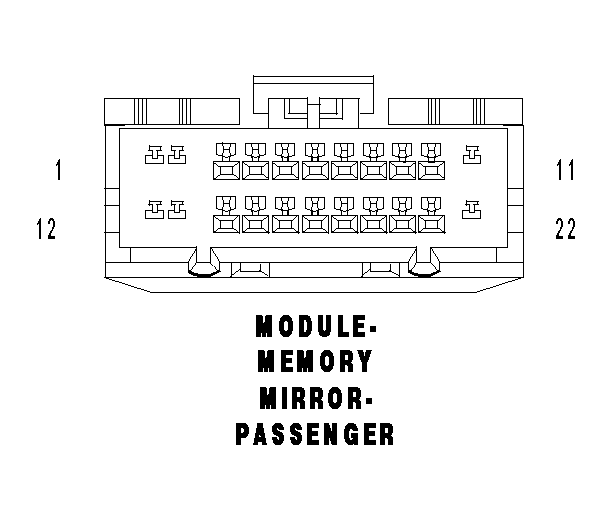

Passenger Memory Mirror Module Connector End View
MODULE-MEMORY MIRROR-PASSENGER - 22 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A215 20RD/LG | FUSED B(+) |
| 2 | C17 20LB/WT | PASSENGER MIRROR HEATER DRIVER |
| 3 | P70 20LG/DB | PASSENGER MIRROR COMMON DRIVER |
| 4 | P72 20TN/GY | PASSENGER MIRROR VERTICAL DRIVER |
| 5 | P74 20TN/OR | PASSENGER MIRROR HORIZONTAL DRIVER |
| 6 | P68 20DG/RD | PASSENGER MIRROR HORIZONTAL POSITION SIGNAL |
| 7 | P64 20TN | PASSENGER MIRROR VERTICAL POSITION SIGNAL |
| 8 | P666 20LG/OR | PASSENGER MIRROR SENSOR SUPPLY |
| 9 | G74 20VT/WT | PASSENGER DOOR AJAR SWITCH SENSE |
| 10 | - | - |
| 11 | - | - |
| 12 | Z944 20BK | GROUND |
| 13 | C917 20DB/YL | PASSENGER MIRROR HEATER GROUND |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | P66 20DG/YL | PASSENGER MIRROR SENSOR GROUND |
| 18 | D54 20WT | CAN B BUS (-) |
| 19 | D55 20WT/OR | CAN B BUS (+) |
| 20 | G160 20VT/LG | PASSENGER DOOR LOCK SWITCH MUX |
| 21 | G776 20VT/OR | PASSENGER DOOR LOCK SWITCH RETURN |
| 22 | - | - |
