Oil Pressure Switch Connector End View

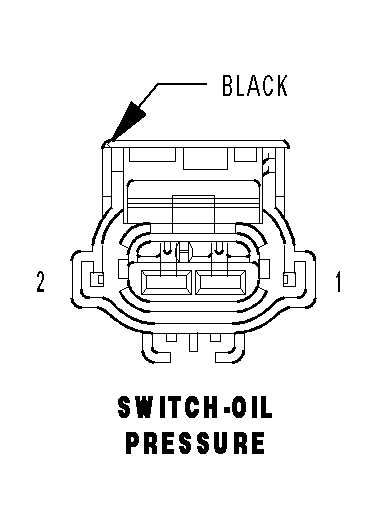

Oil Pressure Switch Connector End View
SWITCH-OIL PRESSURE - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G6 18VT/GY
ENGINE OIL PRESSURE SIGNAL
2
-
-
Courtesy of DAIMLERCHRYSLER CORP.
