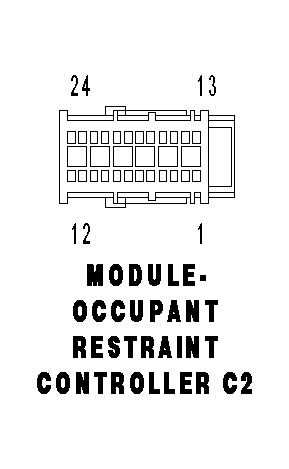

Occupant Restraint Controller Module (Side Airbag) Connector End View (C2)
MODULE-OCCUPANT RESTRAINT CONTROLLER C2 (SIDE AIRBAG) - 24 WAY
| CAV | CIRCUIT | FUNCTION |
| B1 | - | - |
| B2 | - | - |
| B3 | D55 20WT/OR | CAN B BUS (+) |
| B4 | D54 20WT | CAN B BUS (-) |
| B5 | - | - |
| B6 | R104 20LB/LG | PASSENGER AIRBAG INDICATOR DRIVER |
| B7 | - | - |
| B8 | - | - |
| B9 | R81 20LB/WT | LEFT FRONT IMPACT SENSOR GROUND |
| B10 | R79 20LB/VT | LEFT FRONT IMPACT SENSOR SIGNAL |
| B11 | R82 20WT/LB | RIGHT FRONT IMPACT SENSOR GROUND |
| B12 | R80 20VT/LB | RIGHT FRONT IMPACT SENSOR SIGNAL |
| B13 | - | - |
| B14 | - | - |
| B15 | - | - |
| B16 | - | - |
| B17 | R43 20BR/LG | DRIVER SQUIB 1 LINE 2 |
| B18 | R45 20OR/LG | DRIVER SQUIB 1 LINE 1 |
| B19 | R44 20LB/PK | PASSENGER SQUIB 1 LINE 2 |
| B20 | R42 20LB/BR | PASSENGER SQUIB 1 LINE 1 |
| B21 | R61 20VT/LG | DRIVER SQUIB 2 LINE 2 |
| B22 | R63 20VT/RD | DRIVER SQUIB 2 LINE 1 |
| B23 | R64 20LB/WT | PASSENGER SQUIB 2 LINE 1 |
| B24 | R62 20LB/DG | PASSENGER SQUIB 2 LINE 2 |
