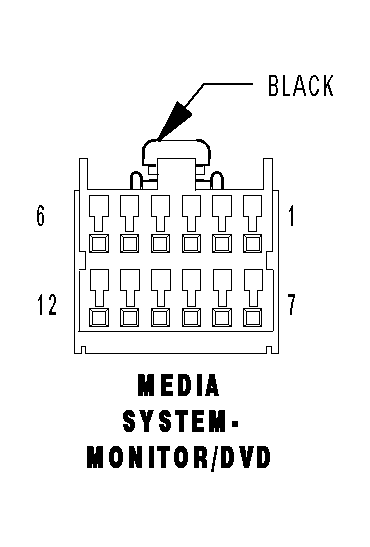

Media Monitor/DVD System Connector End View
MEDIA SYSTEM-MONITOR/DVD - BLACK 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X510 20DG/RD | VDO-AUX AUDIO RT |
| 2 | X916 20LB/PK | SDARS AUDIO RETURN |
| 3 | X521 20GY/LB | VDO-AUX AUDIO LT 2 |
| 4 | - | - |
| 5 | - | - |
| 6 | A300 20GY/LG | FUSED B(+) |
| 7 | X511 20DB/RD | VDO-AUX AUDIO LT |
| 8 | X910 20GY/DG | VDO-AUX AUDIO RTN/COMMON |
| 9 | X522 20LG/RD | VDO-AUX AUDIO RT 2 |
| 10 | D55 20WT/OR | CAN B BUS (+) |
| 11 | D54 20WT | CAN B BUS (-) |
| 12 | Z957 20BK | GROUND |
