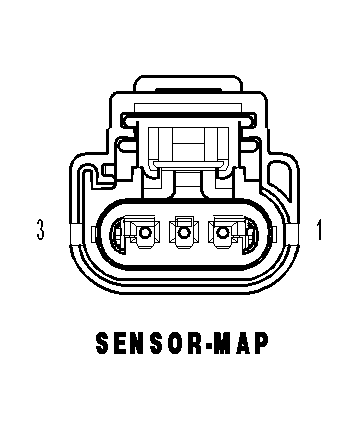

Map Sensor Connector End View

SENSOR-MAP - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K1 20VT/BR (3.7L/4.7L)	MAP SIGNAL
1	K1 18VT/BR (5.7L)	MAP SIGNAL
2	K900 20DB/DG (3.7L/4.7L)	SENSOR GROUND
2	K900 18DB/DG (5.7L)	SENSOR GROUND
3	F856 20YL/PK (3.7L/4.7L)	5 VOLT SUPPLY
3	F856 18YL/PK (5.7L)	5 VOLT SUPPLY
