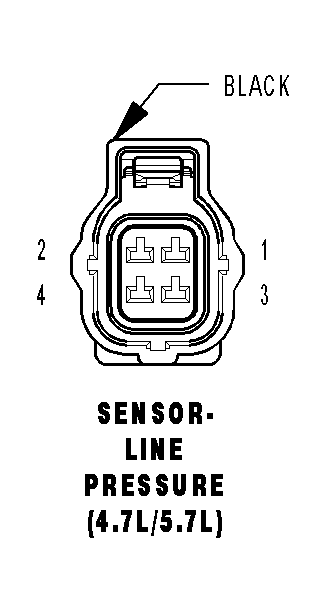

Line Pressure Sensor (4.7L/5.7L) Connector End View
SENSOR-LINE PRESSURE (4.7L/5.7L) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K900 20DB/DG |
SENSOR GROUND |
| 2 |
F856 20YL/PK |
5 VOLT SUPPLY |
| 3 |
T38 20YL/BR |
LINE PRESSURE SENSOR SIGNAL |
| 4 |
- |
- |
