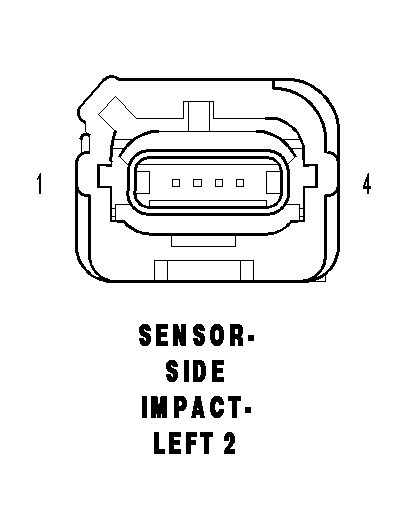

Left Side Impact Sensor 2 Connector End View
SENSOR-SIDE IMPACT-LEFT 2 - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R17 20LG |
LEFT SIDE IMPACT SENSOR 2 SIGNAL |
| 2 |
R19 20LG/WT |
LEFT SIDE IMPACT SENSOR 2 GROUND |
| 3 |
R23 20LB/DB |
LEFT SIDE IMPACT SENSOR 3 GROUND |
| 4 |
R21 20LB/WT |
LEFT SIDE IMPACT SENSOR 3 SIGNAL |
