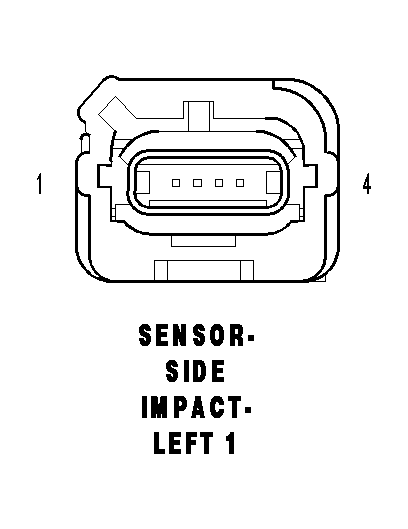

Left Side Impact Sensor 1 Connector End View
SENSOR-SIDE IMPACT-LEFT 1 - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R13 20LG/BR |
LEFT SIDE IMPACT SENSOR 1 SIGNAL |
| 2 |
R15 20BR/GY |
LEFT SIDE IMPACT SENSOR 1 GROUND |
| 3 |
R19 20LG/WT |
LEFT SIDE IMPACT SENSOR 2 GROUND |
| 4 |
R17 20LG |
LEFT SIDE IMPACT SENSOR 2 SIGNAL |
