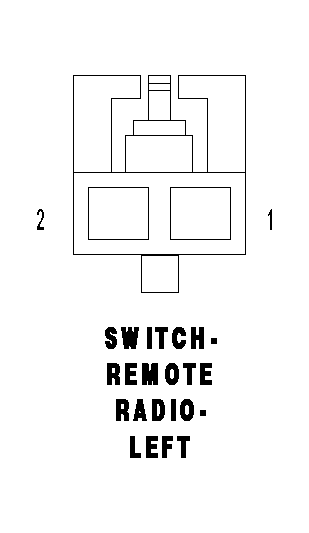

Left Remote Radio Switch Connector End View
Left Remote Radio Switch Connector End View
SWITCH-REMOTE RADIO-LEFT - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
X20 22GY/WT
RADIO CONTROL MUX
2
G902 22VT/BR
SWITCH MUX RETURN
Courtesy of DAIMLERCHRYSLER CORP.
