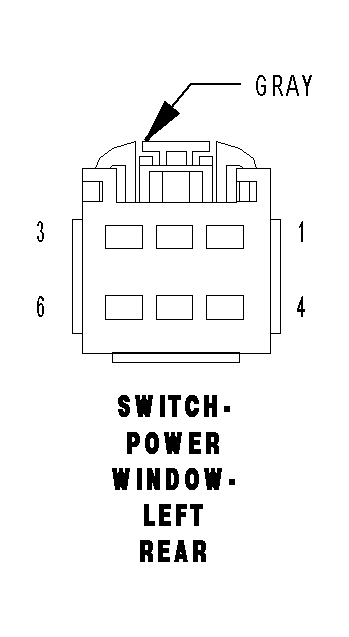

Left Rear Power Window Switch Connector End View
SWITCH-POWER WINDOW-LEFT REAR - GRAY 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q611 14DB/PK |
LEFT REAR WINDOW DRIVER (DOWN) |
| 2 |
Q211 14TN/LB |
DRIVER REAR WINDOW DRIVER (DOWN) |
| 3 |
Q111 14TN/YL |
DRIVER REAR WINDOW DRIVER (UP) |
| 4 |
Q411 14DB/LG |
LEFT REAR WINDOW DRIVER (UP) |
| 5 |
- |
- |
| 6 |
Q15 14OR/LB |
POWER WINDOW SWITCH FEED |
