Left Front Window Motor Connector End View

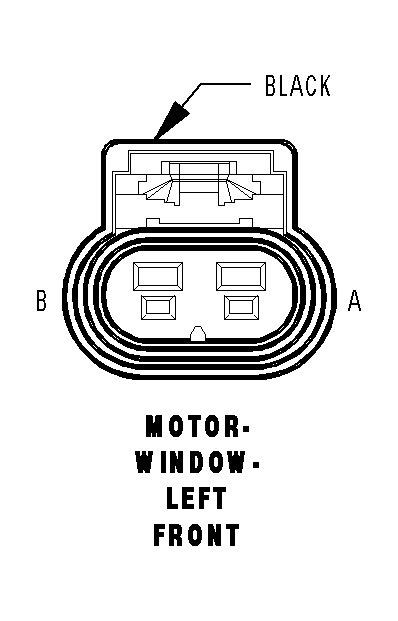

MOTOR-WINDOW-LEFT FRONT - BLACK 2 WAY

GCHB580526Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
A Q11 14WT/DB LEFT FRONT WINDOW DRIVER (UP)
B Q21 14OR/WT LEFT FRONT WINDOW DRIVER (DOWN)
