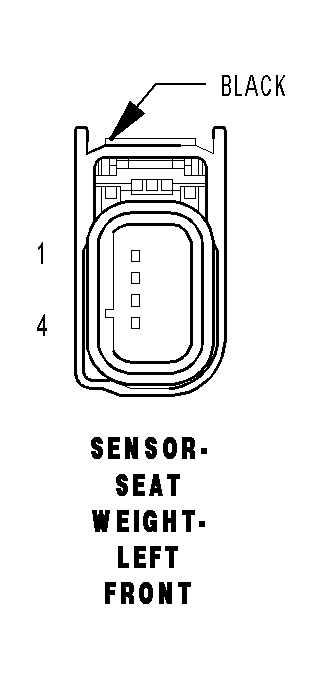

Left Front Seat Weight Sensor Connector End View
SENSOR-SEAT WEIGHT-LEFT FRONT - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R701 20LG |
SEAT WEIGHT SENSOR 5 VOLTS |
| 2 |
R728 20LB/YL |
SEAT WEIGHT SENSOR GROUND |
| 3 |
- |
- |
| 4 |
R717 20LG/DG |
SEAT WEIGHT LEFT FRONT SENSOR SIGNAL |
